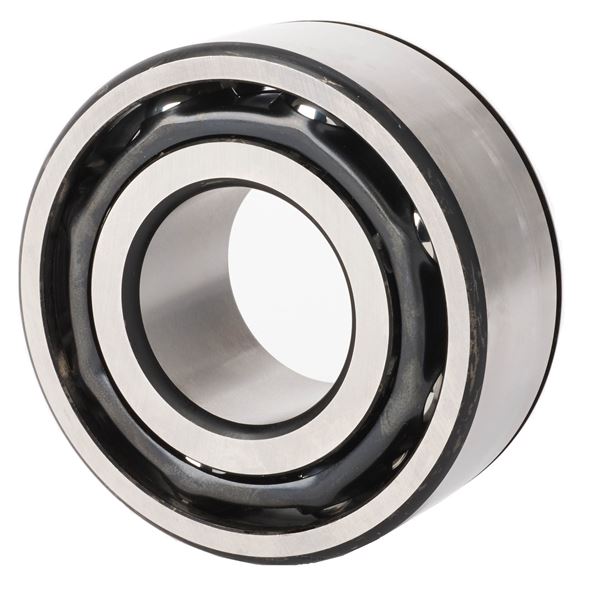

Timken 5205K
Fafnir® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
25 mm
Ball Type
STEEL
Cage Type
Molded

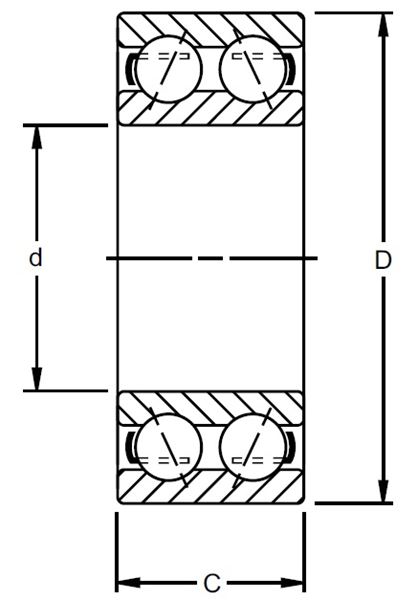

Dimensions
D - Outer Diameter
52 mm
C - Ring Width
20.62 mm
Contact Angle
20 º
Basic Load Ratings
C0 - Static Radial Rating
15100 N
Ce - Dynamic Radial Rating1
24800 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
29.970 mm
Da - Outer Ring Backing Diameter
45.590 mm
