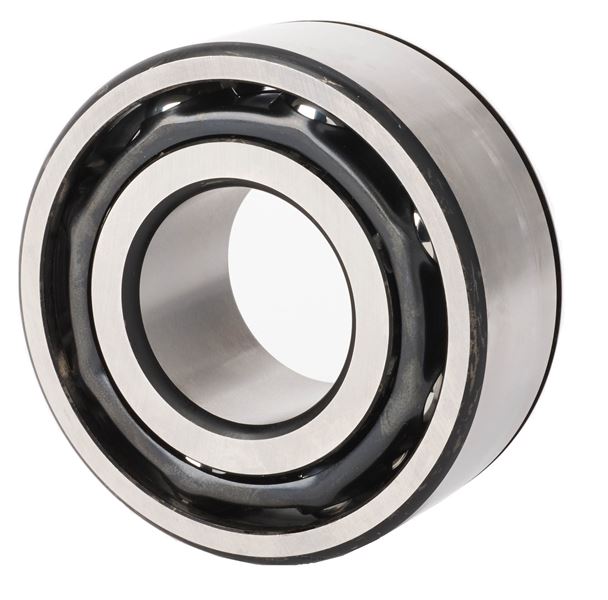

Timken 5310WD
Fafnir® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Design Units
Metric
d - Bore
50 mm
Ball Type
STEEL
Cage Type
Snap In

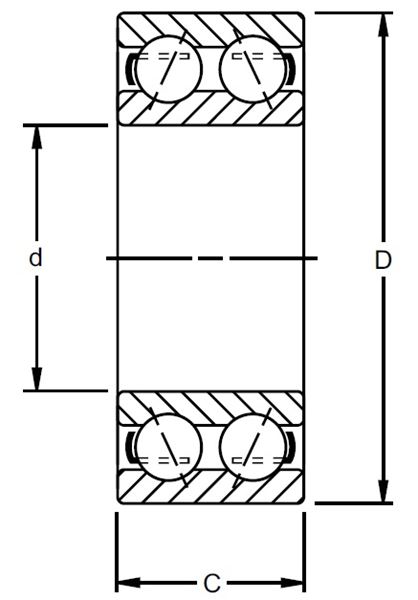

Dimensions
D - Outer Diameter
110 mm
C - Ring Width
47.62 mm
Contact Angle
30 º
Basic Load Ratings
C0 - Static Radial Rating
97000 N
Ce - Dynamic Radial Rating1
126000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
61.722 mm
Da - Outer Ring Backing Diameter
99.873 mm
