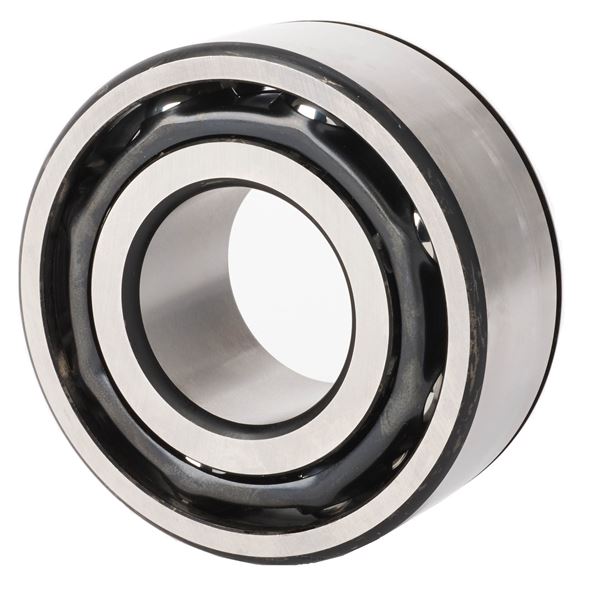

Timken 5312KG
Fafnir® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
60 mm
Ball Type
STEEL
Cage Type
Snap In
Manufacturing Part Number
5312KG C3

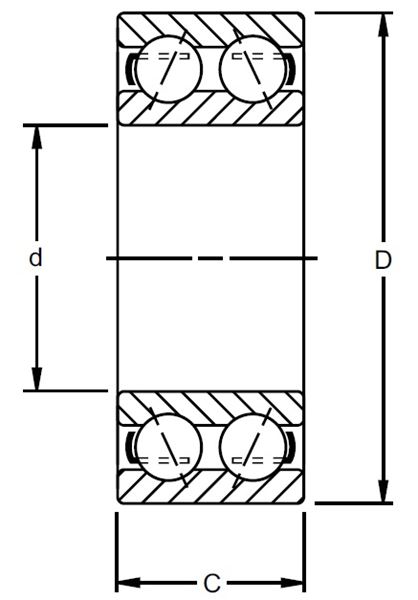

Dimensions
D - Outer Diameter
130 mm
C - Ring Width
53.98 mm
Contact Angle
20 º
Basic Load Ratings
C0 - Static Radial Rating
151000 N
Ce - Dynamic Radial Rating1
191000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
73.406 mm
Da - Outer Ring Backing Diameter
115.443 mm
