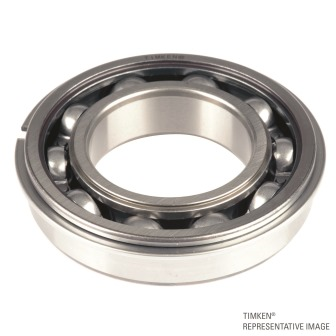

Timken 6001-NR
Deep Groove Ball Bearing
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C0 (Normal)
Bore Size d
12 mm
Features
Snap Ring
Bearing Type
Standard DGBB

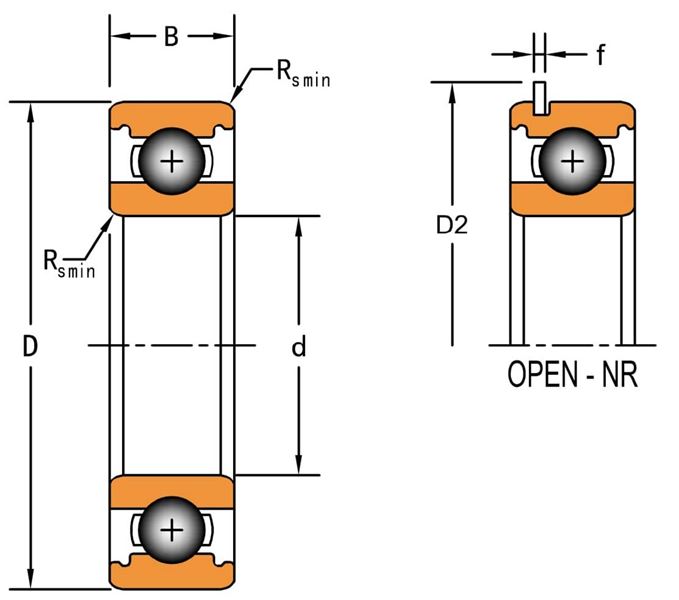

Dimensions
Outside Diameter D
28 mm
Outside Ring Width B
8 mm
Radius Rs min
0.3 mm
Snap Ring Diameter D2 max
30.800 mm
Snap Ring Width f max
0.850 mm
Basic Load Ratings
Cr - Dynamic Load Rating
5100 N
C0r - Static Load Rating
2400 N
Factors
Grease Reference Speed
23000 rpm
Oil Reference Speed
33000 rpm
