Timken 618/560MA
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
560 mm
Features
Open
Manufacturing Part Number
618/560MA

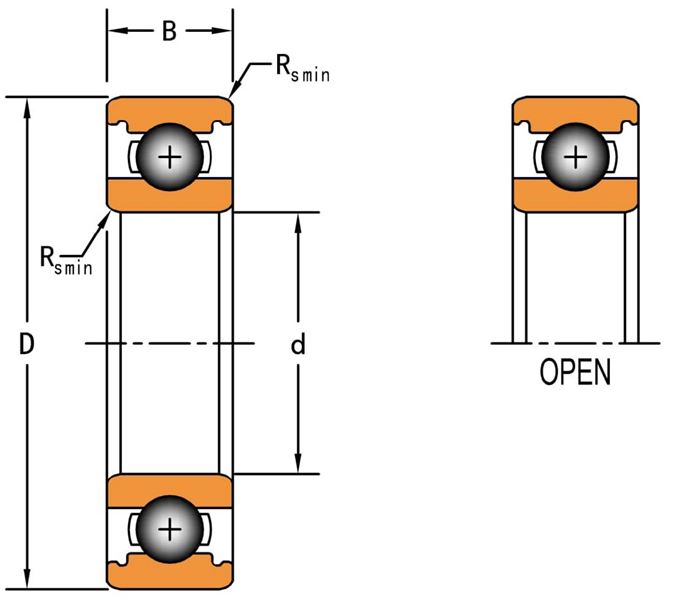

Dimensions
Outside Diameter D
680 mm
Outside Ring Width B
56 mm
Fillet Radius/Chamfer
3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
290000 N
C0r - Static Load Rating
523000 N
Factors
Grease Reference Speed
700 rpm
Grease Limiting Speed
700 rpm
Oil Reference Speed
850 rpm
