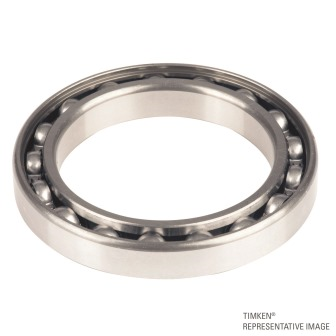

Timken 618/600MA
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
600 mm
Features
Open
Manufacturing Part Number
618/600MA

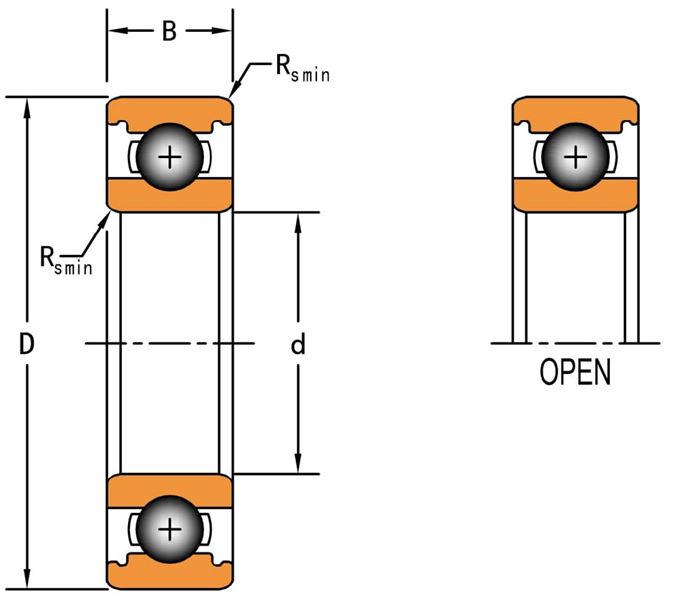

Dimensions
Outside Diameter D
730 mm
Outside Ring Width B
60 mm
Fillet Radius/Chamfer
3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
365000 N
C0r - Static Load Rating
690000 N
Factors
Grease Reference Speed
670 rpm
Grease Limiting Speed
670 rpm
Oil Reference Speed
800 rpm
