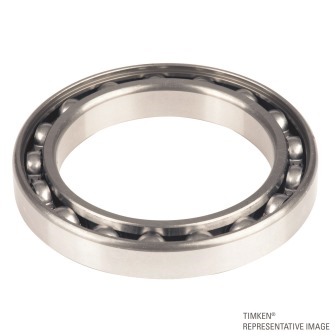

Timken 618/750MA
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
750 mm
Features
Open
Manufacturing Part Number
618/750MA

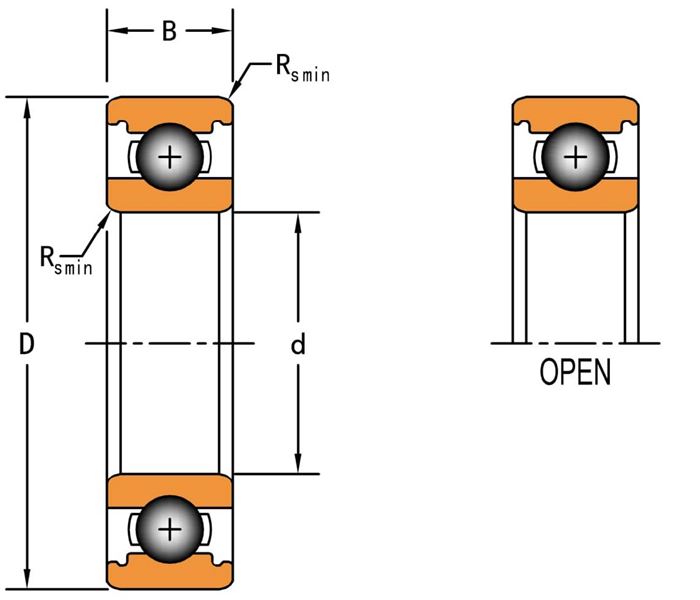

Dimensions
Outside Diameter D
920 mm
Outside Ring Width B
78 mm
Fillet Radius/Chamfer
5 mm
Basic Load Ratings
Cr - Dynamic Load Rating
475000 N
C0r - Static Load Rating
1010000 N
Factors
Grease Reference Speed
500 rpm
Grease Limiting Speed
500 rpm
Oil Reference Speed
600 rpm
