Timken 618/800MA
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
800 mm
Features
Open
Manufacturing Part Number
618/800MA

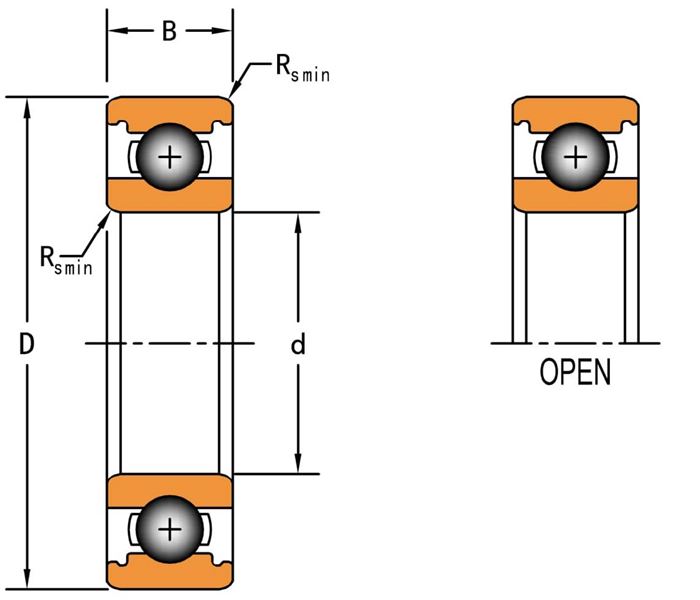

Dimensions
Outside Diameter D
980 mm
Outside Ring Width B
82 mm
Fillet Radius/Chamfer
5 mm
Basic Load Ratings
Cr - Dynamic Load Rating
560000 N
C0r - Static Load Rating
1250000 N
Factors
Grease Reference Speed
450 rpm
Grease Limiting Speed
450 rpm
Oil Reference Speed
530 rpm
