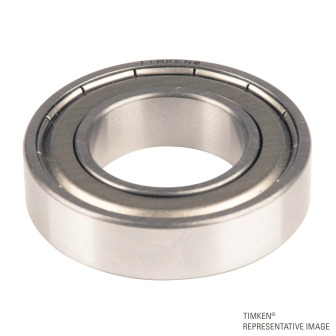

Timken 61803-ZZ
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C0 (Normal)
Bore Size d
17 mm
Features
Shields
Dimensions
Outside Diameter D
26 mm
Outside Ring Width B
5 mm
Fillet Radius/Chamfer
0.3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
2200 N
C0r - Static Load Rating
1500 N
Factors
Grease Reference Speed
24000 rpm
Grease Limiting Speed
24000 rpm
Oil Reference Speed
29000 rpm
