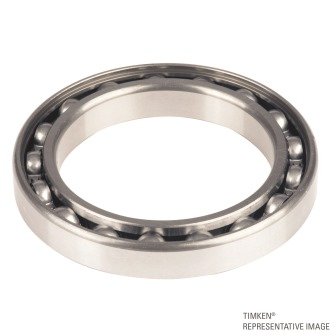

Timken 61805C3
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C3
Bore Size d
25 mm
Features
Open

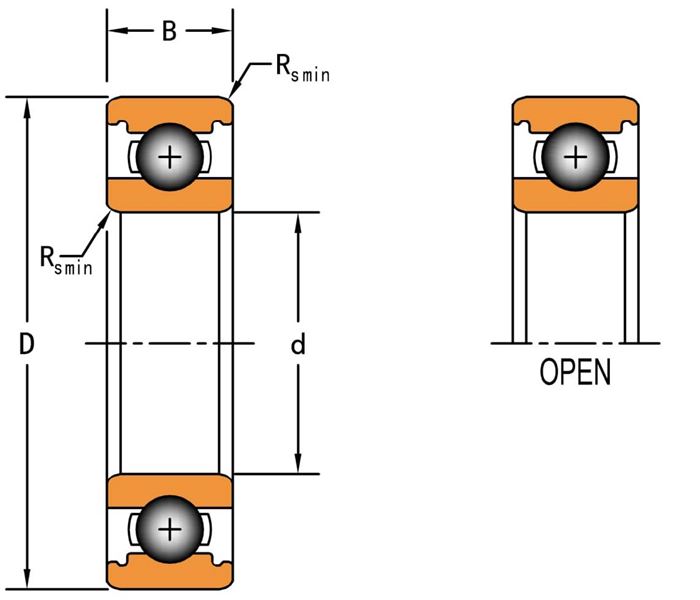

Dimensions
Outside Diameter D
37 mm
Outside Ring Width B
7 mm
Fillet Radius/Chamfer
0.3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
4300 N
C0r - Static Load Rating
2900 N
Factors
Grease Reference Speed
18000 rpm
Grease Limiting Speed
18000 rpm
Oil Reference Speed
21000 rpm
