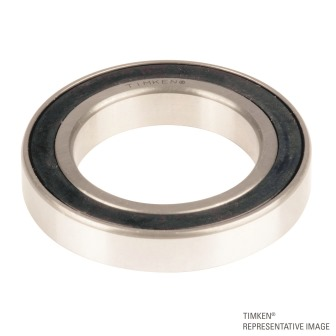

Timken 61809-2RZ
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
45 mm
Features
Non-Contact Seals

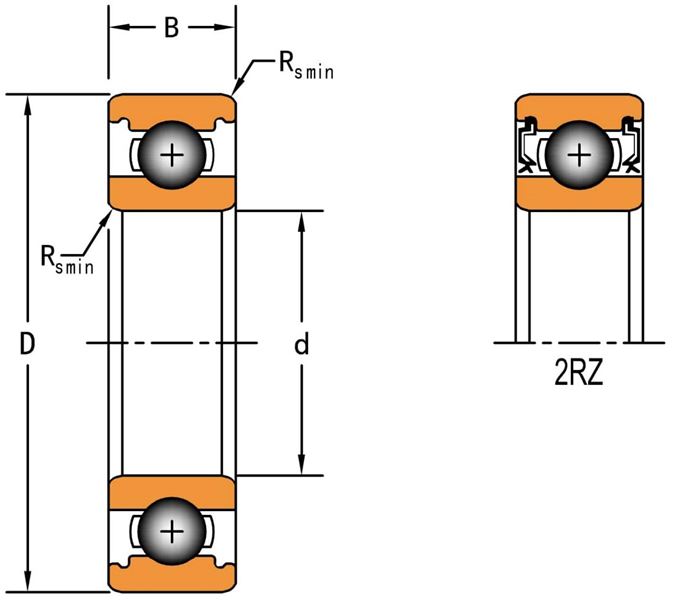

Dimensions
Outside Diameter D
58 mm
Outside Ring Width B
7 mm
Fillet Radius/Chamfer
0.3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
6200 N
C0r - Static Load Rating
5400 N
Factors
Grease Reference Speed
11000 rpm
Grease Limiting Speed
11000 rpm
Oil Reference Speed
13000 rpm
