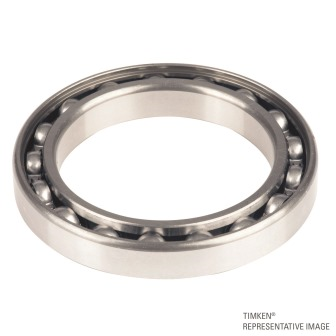

Timken 61812
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
60 mm
Features
Open

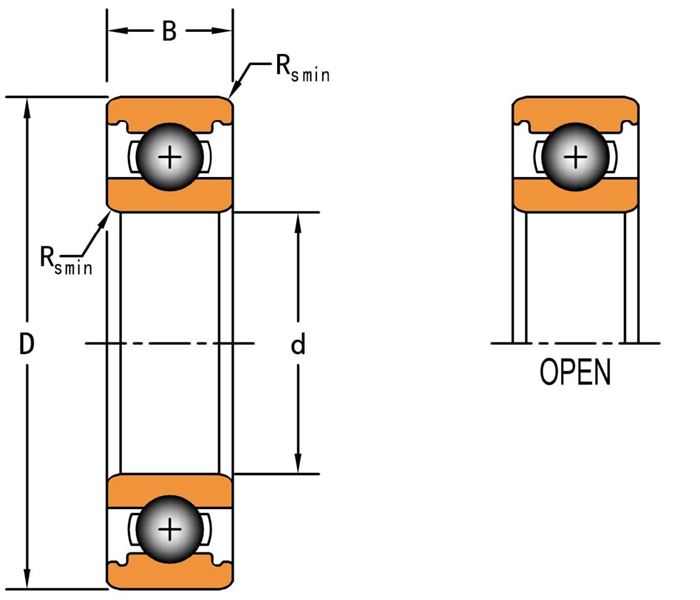

Dimensions
Outside Diameter D
78 mm
Outside Ring Width B
10 mm
Fillet Radius/Chamfer
0.3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
11500 N
C0r - Static Load Rating
10600 N
Factors
Grease Reference Speed
7900 rpm
Grease Limiting Speed
7900 rpm
Oil Reference Speed
9400 rpm
