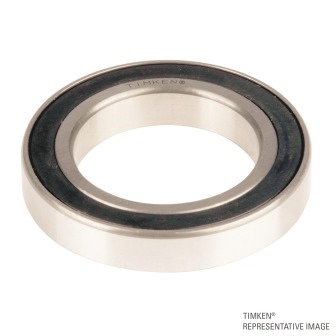

Timken 61826-2RS-C3
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C3
Bore Size d
130 mm
Features
Contact Seals

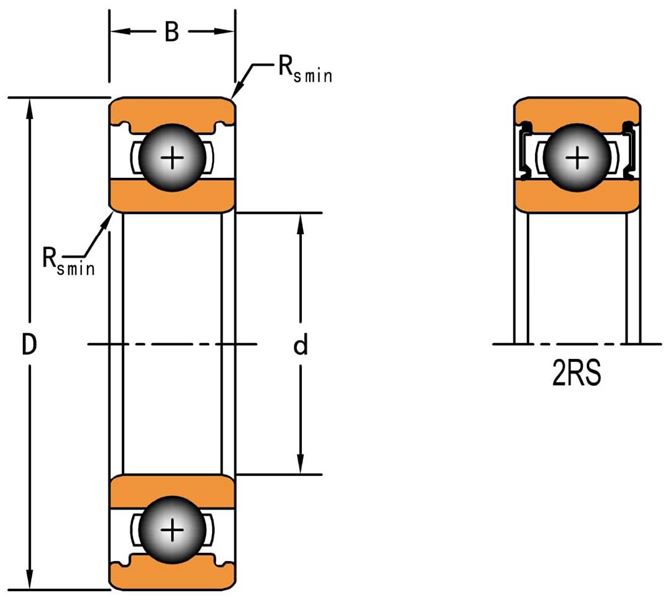

Dimensions
Outside Diameter D
165 mm
Outside Ring Width B
18 mm
Fillet Radius/Chamfer
1.1 mm
Basic Load Ratings
Cr - Dynamic Load Rating
37900 N
C0r - Static Load Rating
42900 N
Factors
Grease Reference Speed
3400 rpm
Grease Limiting Speed
3400 rpm
Oil Reference Speed
5000 rpm
