Timken 61830-C3
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C3
Bore Size d
150 mm
Features
Open

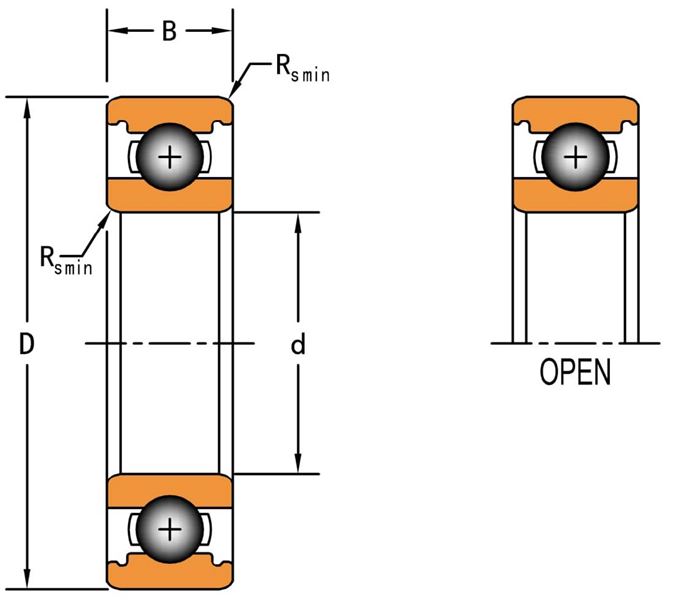

Dimensions
Outside Diameter D
190 mm
Outside Ring Width B
20 mm
Fillet Radius/Chamfer
1.1 mm
Basic Load Ratings
Cr - Dynamic Load Rating
49100 N
C0r - Static Load Rating
57100 N
Factors
Grease Reference Speed
3000 rpm
Grease Limiting Speed
3000 rpm
Oil Reference Speed
4500 rpm
