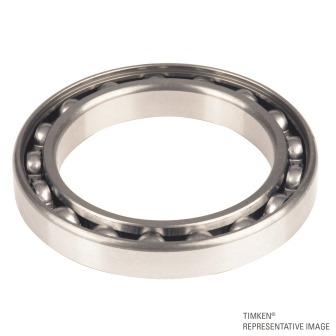

Timken 61896MA
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
480 mm
Features
Open
Manufacturing Part Number
61896MA

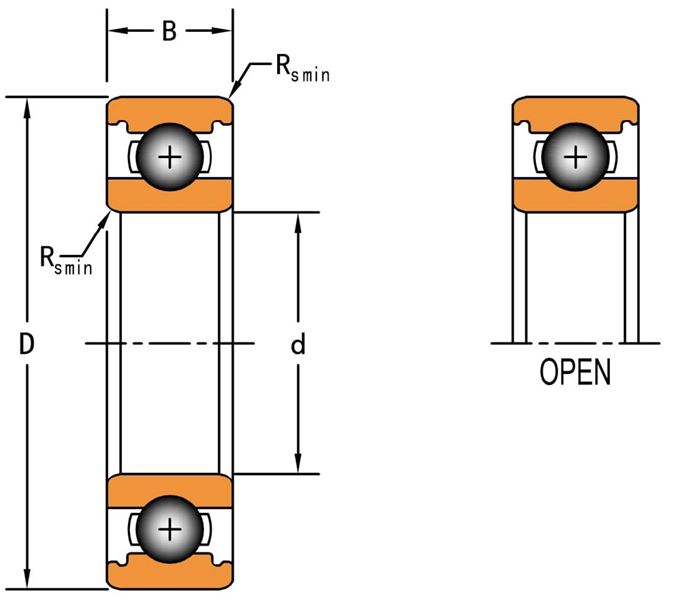

Dimensions
Outside Diameter D
600 mm
Outside Ring Width B
56 mm
Fillet Radius/Chamfer
3 mm
Basic Load Ratings
Cr - Dynamic Load Rating
325000 N
C0r - Static Load Rating
560000 N
Factors
Grease Reference Speed
850 rpm
Grease Limiting Speed
850 rpm
Oil Reference Speed
1000 rpm
