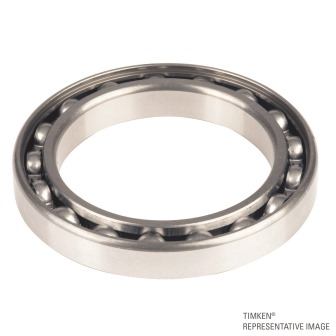

Timken 61915
Thin Section Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Clearance
C0 (Normal)
Bore Size d
75 mm
Features
Open
Manufacturing Part Number
61915

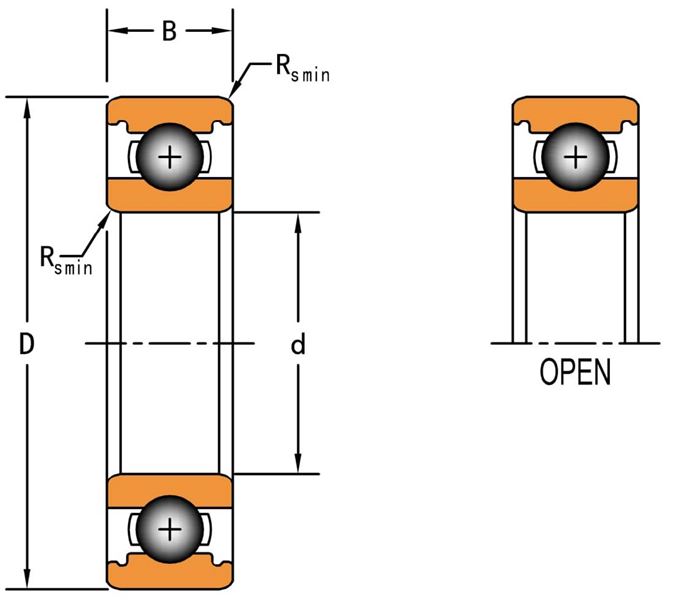

Dimensions
Outside Diameter D
105 mm
Outside Ring Width B
16 mm
Fillet Radius/Chamfer
1.5 mm
Basic Load Ratings
Cr - Dynamic Load Rating
24300 N
C0r - Static Load Rating
22500 N
Factors
Grease Reference Speed
6000 rpm
Grease Limiting Speed
6000 rpm
Oil Reference Speed
7100 rpm
