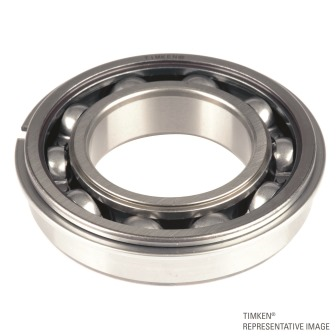

Timken 6300-NR
Deep Groove Ball Bearing
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C0 (Normal)
Bore Size d
10 mm
Features
Snap Ring
Bearing Type
Standard DGBB

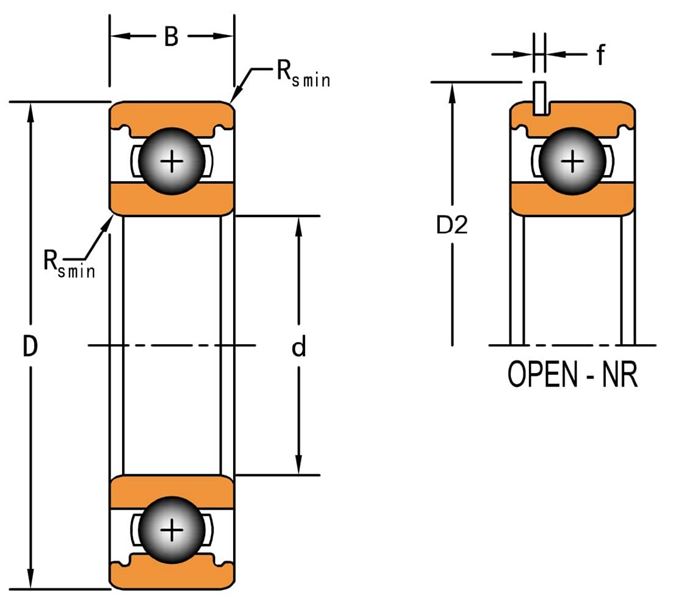

Dimensions
Outside Diameter D
35 mm
Outside Ring Width B
11 mm
Radius Rs min
0.6 mm
Snap Ring Diameter D2 max
39.700 mm
Snap Ring Width f max
1.120 mm
Basic Load Ratings
Cr - Dynamic Load Rating
8100 N
C0r - Static Load Rating
3500 N
Factors
Grease Reference Speed
20000 rpm
Oil Reference Speed
29000 rpm
