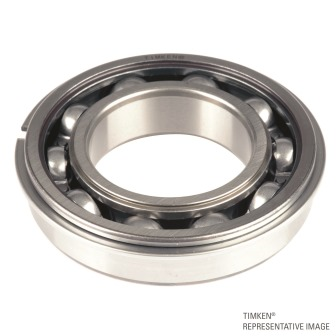

Timken 6301-NR
Deep Groove Ball Bearing
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Clearance
C0 (Normal)
Bore Size d
12 mm
Features
Snap Ring
Bearing Type
Standard DGBB

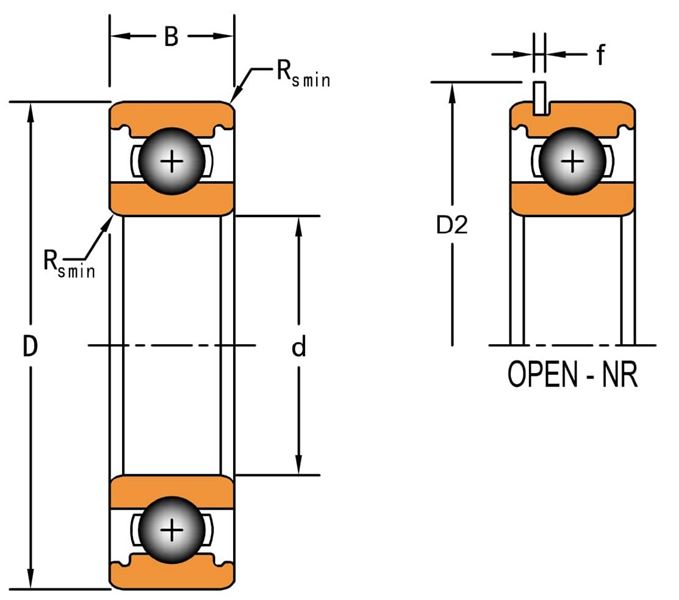

Dimensions
Outside Diameter D
37 mm
Outside Ring Width B
12 mm
Radius Rs min
1 mm
Snap Ring Diameter D2 max
41.300 mm
Snap Ring Width f max
1.120 mm
Basic Load Ratings
Cr - Dynamic Load Rating
9700 N
C0r - Static Load Rating
4200 N
Factors
Grease Reference Speed
19000 rpm
Oil Reference Speed
27000 rpm
