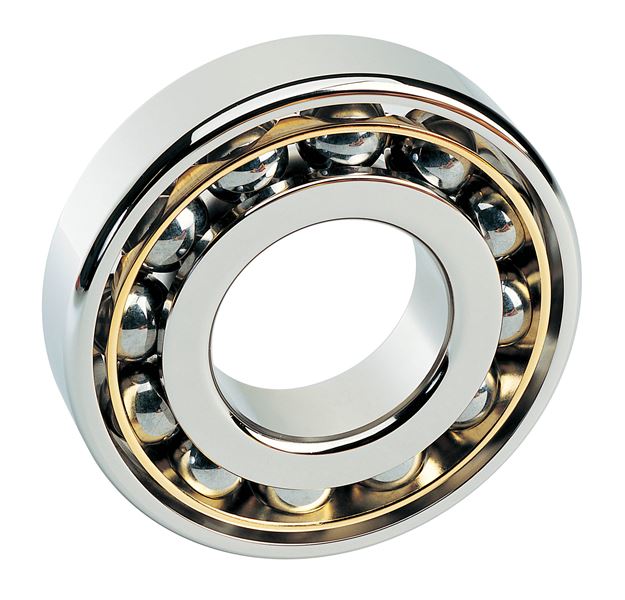

Timken 7217WN
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

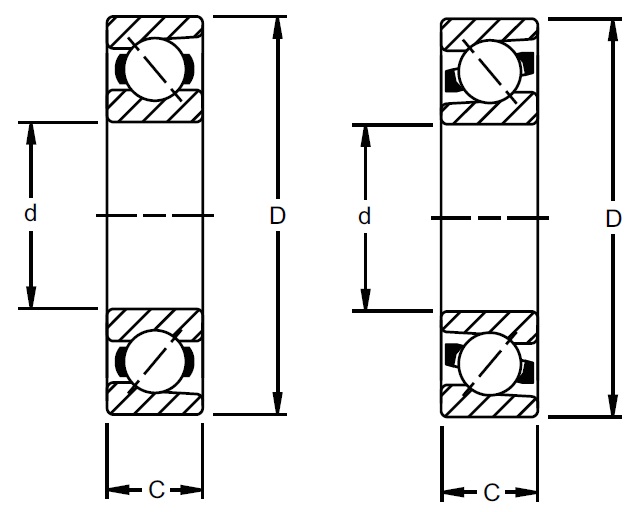

Dimensions
d - Bore
85 mm
D - Outer Diameter
150 mm
Bearing Width
28 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
76500 N
Ce - Dynamic Radial Rating1
106000 N
Factors
Limiting Speed (Grease)
2550 rpm
Limiting Speed (Oil)
3400 rpm
Specifications
Ball Type
STEEL
Cage Type
Ball Piloted, Pressed Brass Cage
Design Units
Metric
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
95.20 mm
Da - Outer Ring Backing Diameter
140.0 mm
