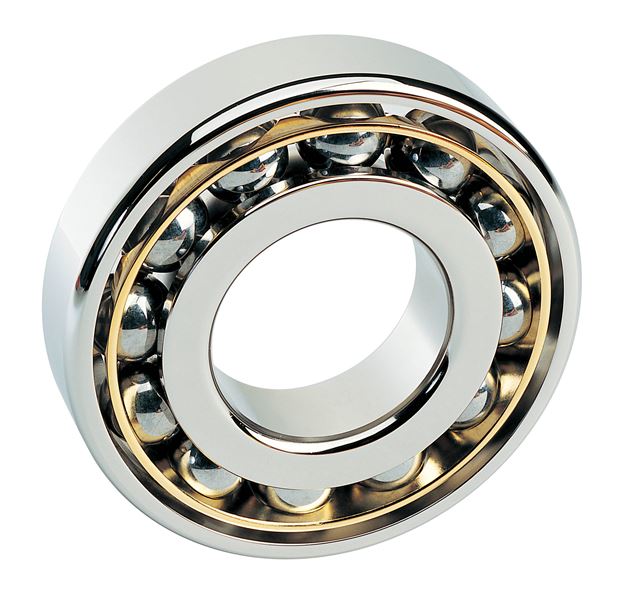

Timken 7303W SU
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

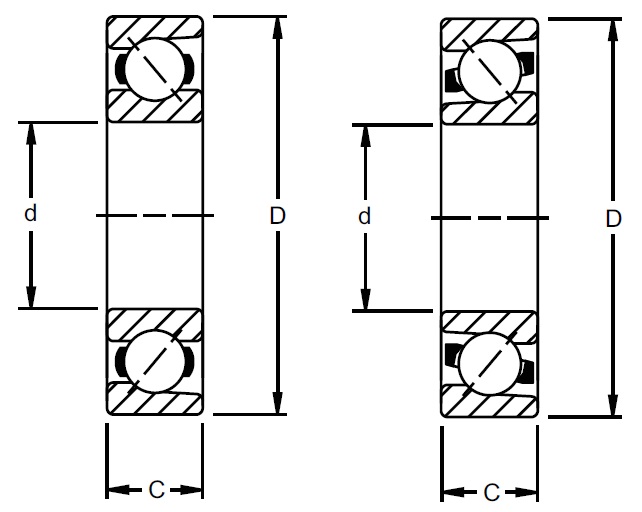

Dimensions
d - Bore
17 mm
D - Outer Diameter
47 mm
Bearing Width
14 mm
Contact Angle
20 º
Basic Load Ratings
C0 - Static Radial Rating
9200 N
Ce - Dynamic Radial Rating1
20200 N
Specifications
Ball Type
STEEL
Cage Type
Steel Cage
Design Units
Metric
Manufacturing Part Number
7303W SU C1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
26.500 mm
Da - Outer Ring Backing Diameter
37.680 mm
