Timken 7306WN
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

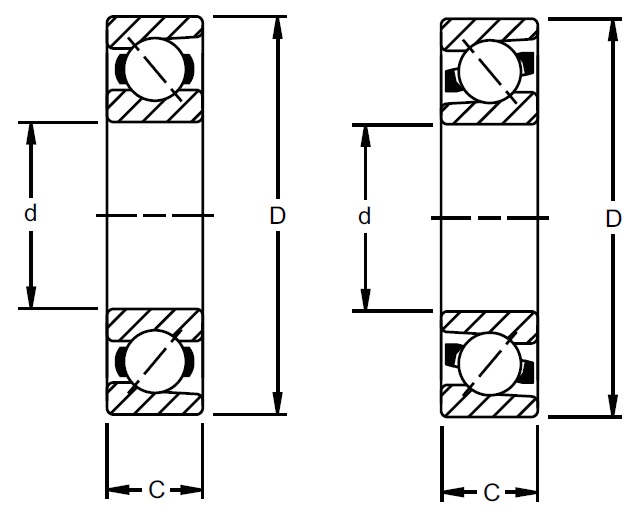

Dimensions
d - Bore
30 mm
D - Outer Diameter
72 mm
Bearing Width
19 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
20800 N
Ce - Dynamic Radial Rating1
34600 N
Specifications
Ball Type
STEEL
Cage Type
Ball Piloted, Pressed Brass Cage
Design Units
Metric
Manufacturing Part Number
7306WN C1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
47.240 mm
Da - Outer Ring Backing Diameter
57.400 mm
