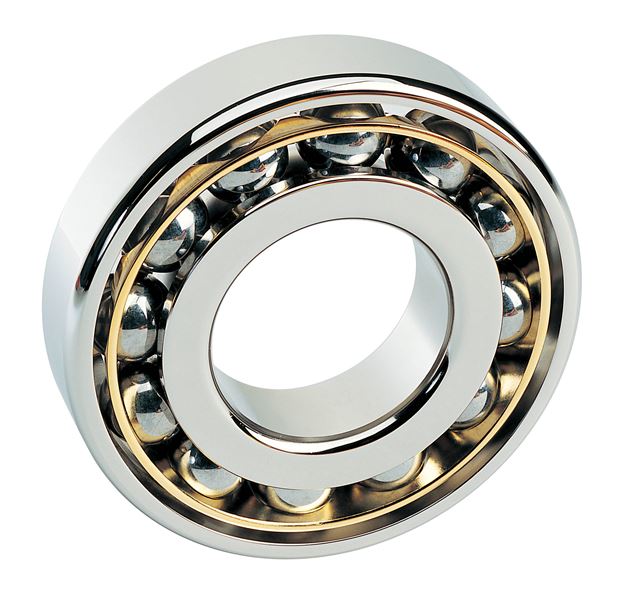

Timken 7309WN
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

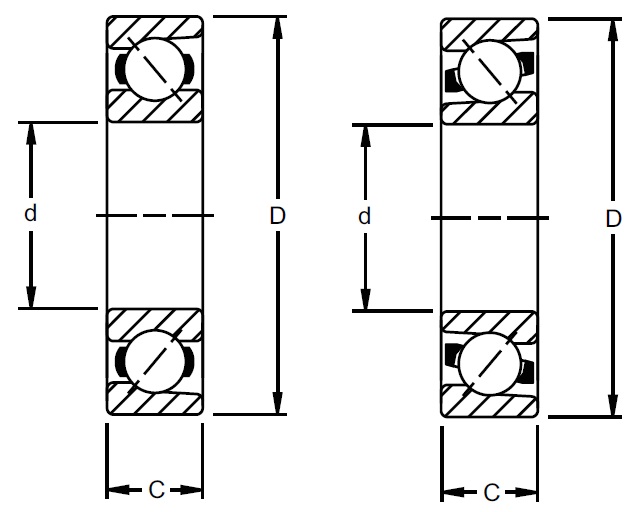

Dimensions
d - Bore
45 mm
D - Outer Diameter
100 mm
Bearing Width
25 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
39900 N
Ce - Dynamic Radial Rating1
66600 N
Specifications
Ball Type
STEEL
Cage Type
Ball Piloted, Pressed Brass Cage
Design Units
Metric
Manufacturing Part Number
7309WN C1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
65.480 mm
Da - Outer Ring Backing Diameter
80.440 mm
