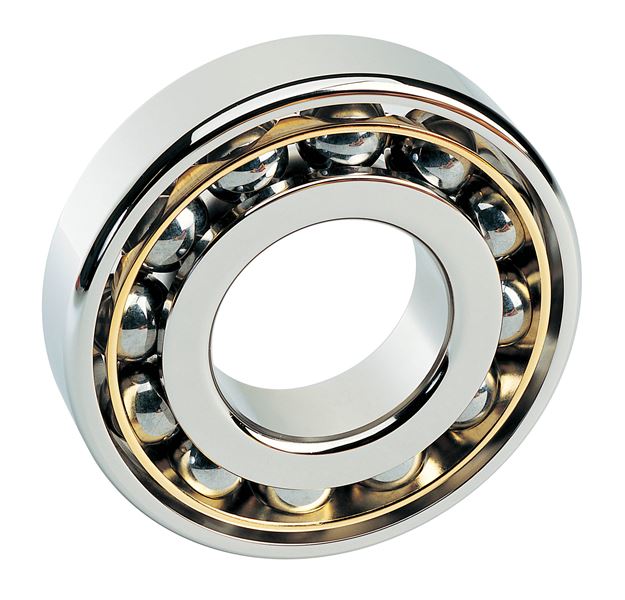

Timken 7310WN SU
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

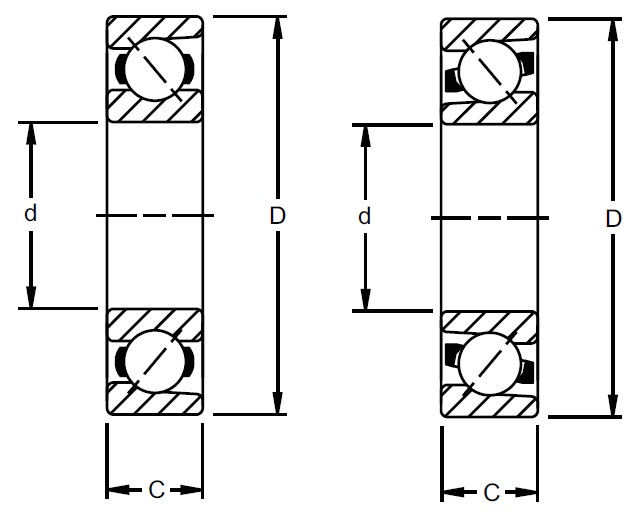

Dimensions
d - Bore
50 mm
D - Outer Diameter
110 mm
Bearing Width
27 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
47900 N
Ce - Dynamic Radial Rating1
76800 N
Specifications
Ball Type
STEEL
Cage Type
Ball Piloted, Pressed Brass Cage
Design Units
Metric
Manufacturing Part Number
7310WN SU C1
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
72.340 mm
Da - Outer Ring Backing Diameter
88.650 mm
