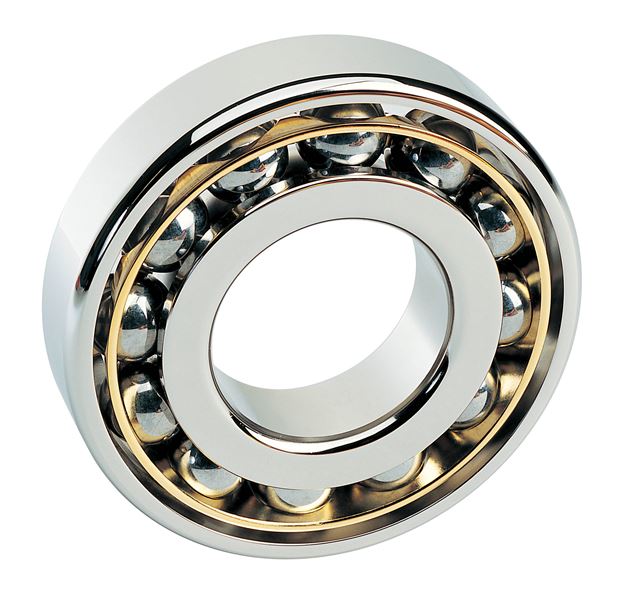

Timken 7313WN MBR SU
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

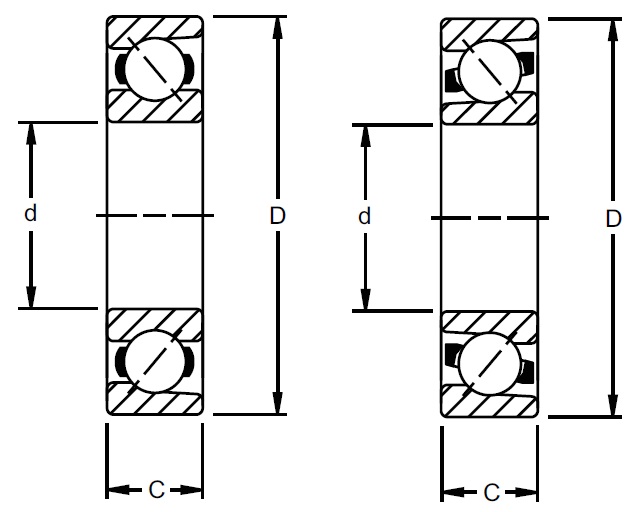

Dimensions
d - Bore
65 mm
D - Outer Diameter
140 mm
Bearing Width
33 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
75500 N
Ce - Dynamic Radial Rating1
115000 N
Factors
Limiting Speed (Grease)
3420 rpm
Limiting Speed (Oil)
3900 rpm
Specifications
Ball Type
STEEL
Cage Type
Machined Bronze Cage
Design Units
Metric
Manufacturing Part Number
7313WNMBRSU
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
77 mm
Da - Outer Ring Backing Diameter
128.00 mm
