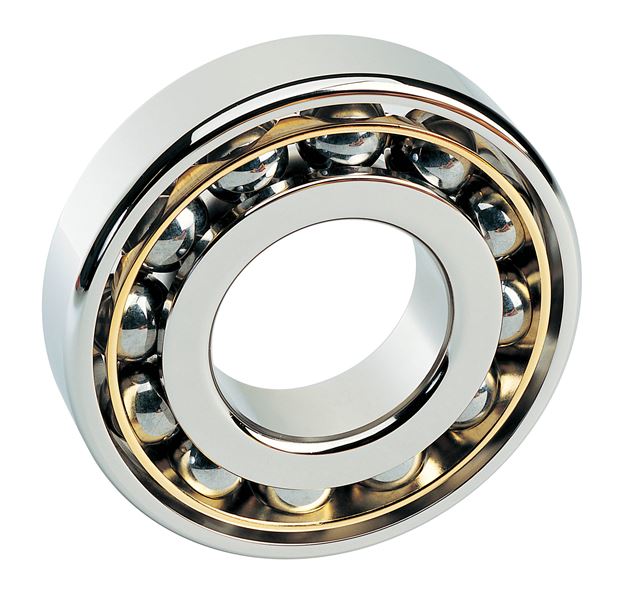

Timken 7318WN MBR SU
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

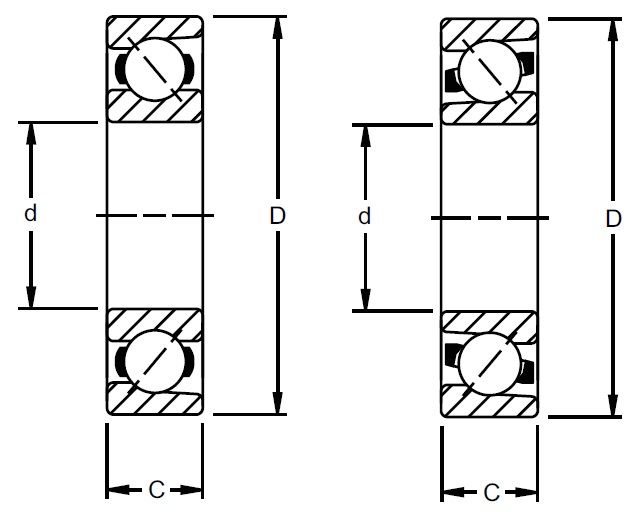

Dimensions
d - Bore
90 mm
D - Outer Diameter
190 mm
Bearing Width
43 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
135000 N
Ce - Dynamic Radial Rating1
177000 N
Factors
Limiting Speed (Grease)
2500 rpm
Limiting Speed (Oil)
2860 rpm
Specifications
Ball Type
STEEL
Cage Type
Machined Bronze Cage
Design Units
Metric
Manufacturing Part Number
7318WNMBRSU
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
3 mm
r - Outer Ring "To Clear" Radius3
3 mm
da - Inner Ring Backing Diameter
103.90 mm
Da - Outer Ring Backing Diameter
176.0 mm
