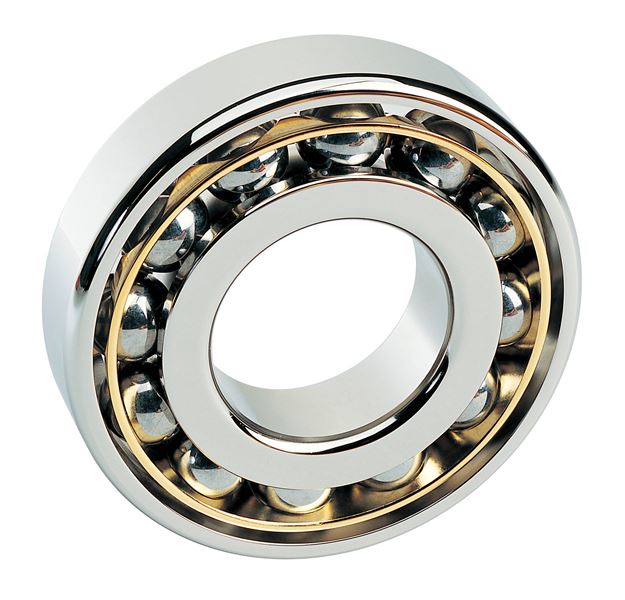

Timken 7318WN
Fafnir® Single RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

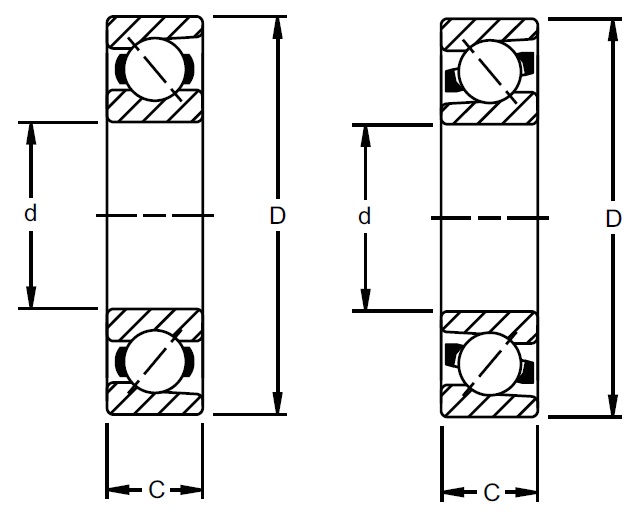

Dimensions
d - Bore
90 mm
D - Outer Diameter
190 mm
Bearing Width
43 mm
Contact Angle
40 º
Basic Load Ratings
C0 - Static Radial Rating
135000 N
Ce - Dynamic Radial Rating1
177000 N
Factors
Limiting Speed (Grease)
2500 rpm
Limiting Speed (Oil)
2860 rpm
Specifications
Ball Type
STEEL
Cage Type
Ball Piloted, Pressed Brass Cage
Design Units
Metric
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
3 mm
r - Outer Ring "To Clear" Radius3
3 mm
da - Inner Ring Backing Diameter
103.90 mm
Da - Outer Ring Backing Diameter
176.0 mm
