Timken 9102P

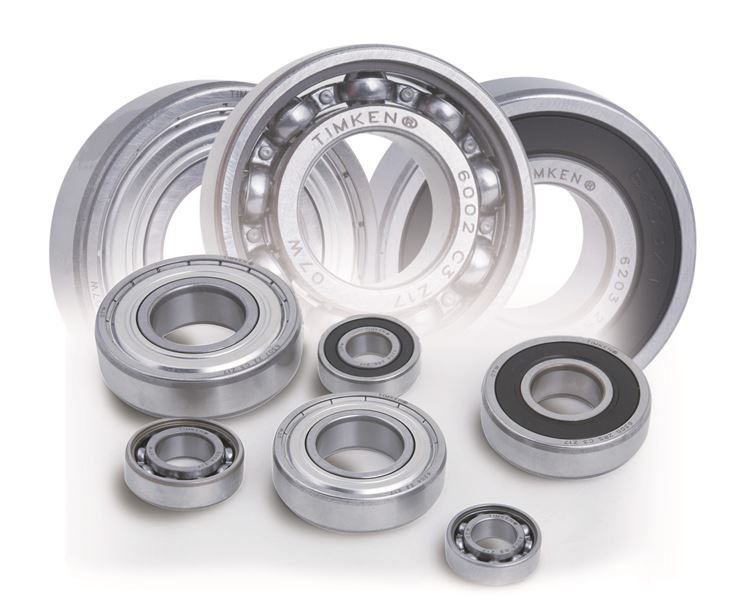

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
15 mm
Ball Type
STEEL
Manufacturing Part Number
P9102P Z1 FS50000
Dimensions
D - Outer Diameter
32 mm
Bearing Width
9 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
6200 N
C0 - Static Radial Rating
2840 N
Factors
Limiting Speed (Grease)
12766 rpm
Limiting Speed (Oil)
14894 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
0.3 mm
r - Outer Ring "To Clear" Radius3
0.3 mm
da - Inner Ring Backing Diameter
17.02 mm
Da - Outer Ring Backing Diameter
29.97 mm
