Timken IR-526432
Inner Ring (IR)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

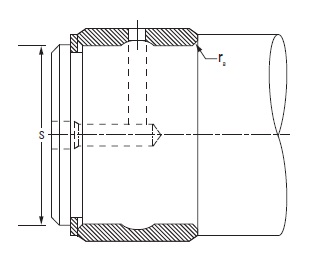

Max. Loose Transition Fit S
82.537 mm
Min. Loose Transition Fit S
82.517 mm
Max. Interference Fit
82.578 mm
Min. Interference Fit
82.563 mm

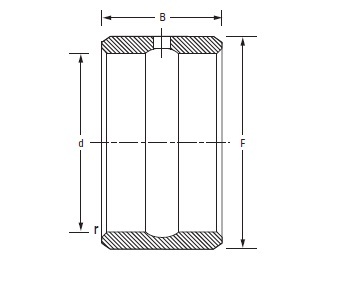

Dimensions
Dimension D
82.55 mm
Dimension F
101.600 mm
Dimension B
50.8 mm
Chamfer r
2.54 mm
Sub Assembly Part Numbers
Used with Bearing Designation
HJ-648032
