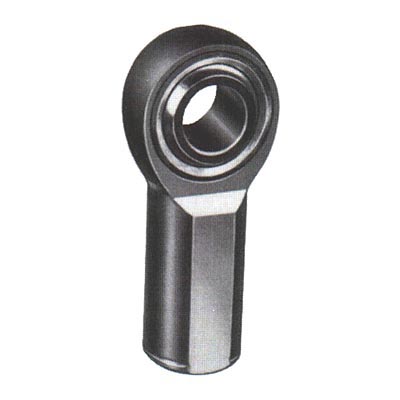

Timken KW-5
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
KW-5
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
5/16-24
Thread Class
UNF-2B

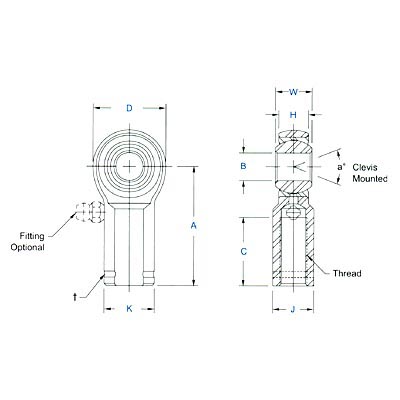

a - Misalignment Angle Clevis Mounted
14 º
Ultimate Radial Static Load Capacity
3,133 lbs
Options
Stud
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
