Timken LM961548 – LM961511CD
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
LM961548 – LM961511CD
Specifications
Series
LM961500
Cone Part Number
LM961548
Cup Part Number
LM961511CD
Design Unit
Inch
Cage Material
Stamped Steel
Related Assembly Number(s)
LM961548-902B7

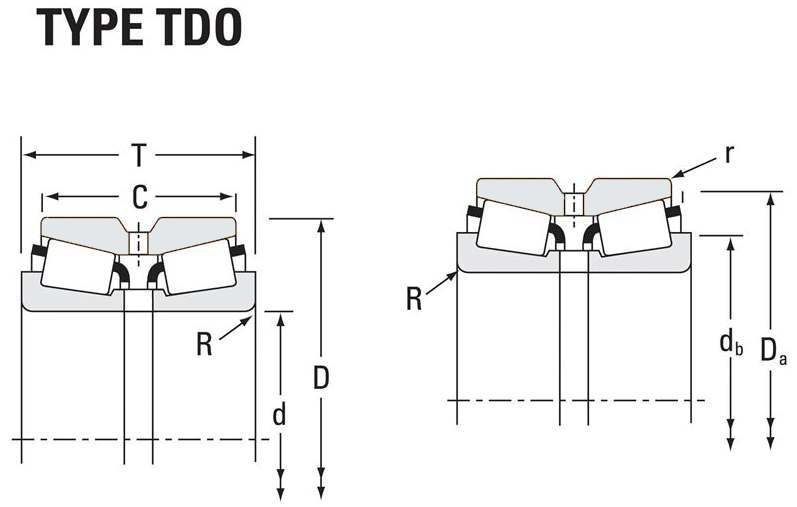

Dimensions
d - Bore
342.900 mm
D - Cup Outer Diameter
457.098 mm
B - Cone Width
63.5 mm
C - Double Cup Width
101.600 mm
T - Bearing Width across Cones
142.875 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.300 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
db - Cone Backface Backing Diameter
367 mm
Da - Cup Frontface Backing Diameter
446.02 mm
Aa - Cage-Cone Backface Clearance
11.4 mm
a - Effective Center Location3
56.4 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)4
213000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5
1430000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6
371000 N
C7
260000 N
Factors
K - Factor8
0.82
e - ISO Factor9
1.84
Y1 - ISO Factor10
0.37
Y2 - ISO Factor11
0.55
Cg - Geometry Factor12
0.215
