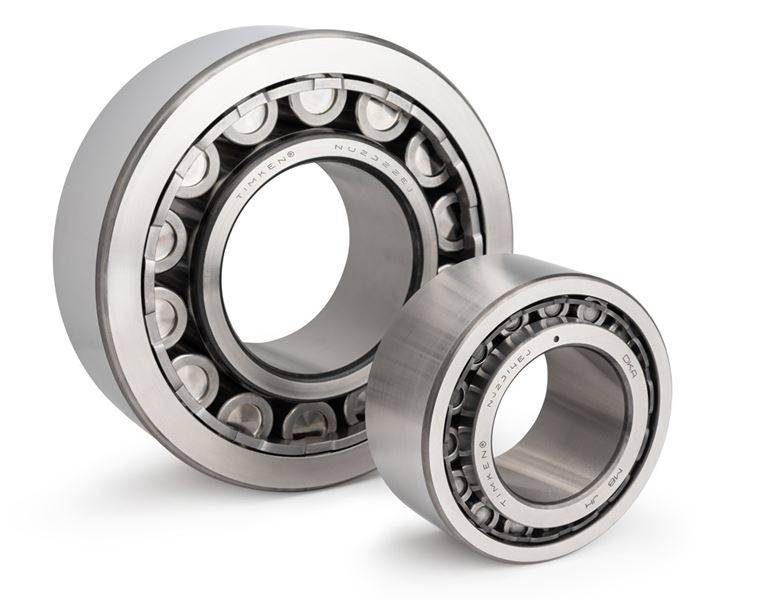

Timken NJ2314EJ
Cylindrical Roller Radial Bearings - Single Row ISO
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
70 mm
Type
NJ
Dimensions
D - Outer Diameter
150 mm
C - Inner Ring Width
51 mm
B - Outer Ring Width
51 mm
Basic Load Ratings
C0 - Static Radial Rating
328000 N
C - Dynamic Radial Rating1
311000 N
Factors
Reference Thermal Speed Rating (Grease)
3700 rpm
Reference Thermal Speed Rating (Oil)2
4300 rpm
Cg - Geometry Factor3
0.087
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius4
2.1 mm
r - Outer Ring "To Clear" Radius5
2.1 mm
da - Inner Ring Backing Diameter
83.3 mm
Da - Outer Ring Backing Diameter
133 mm
