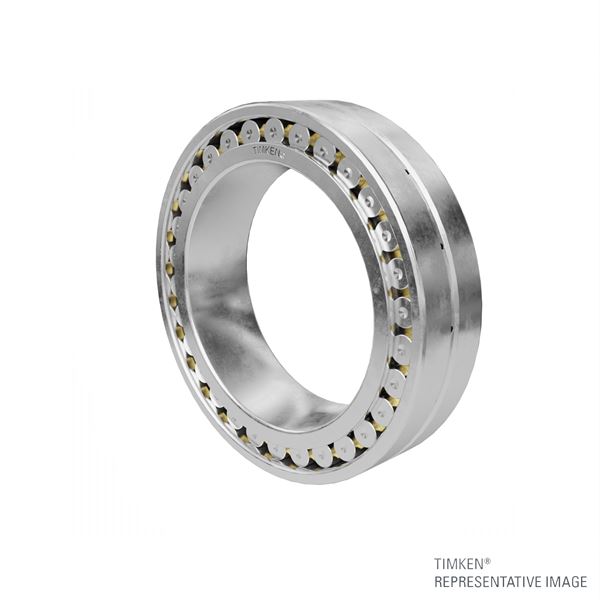

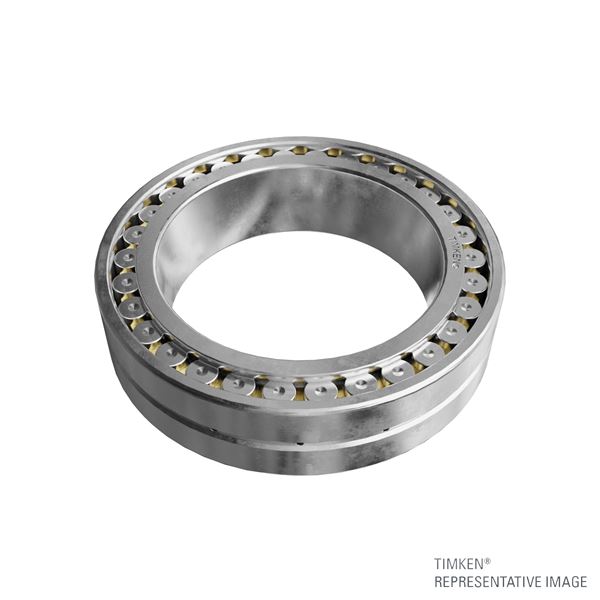

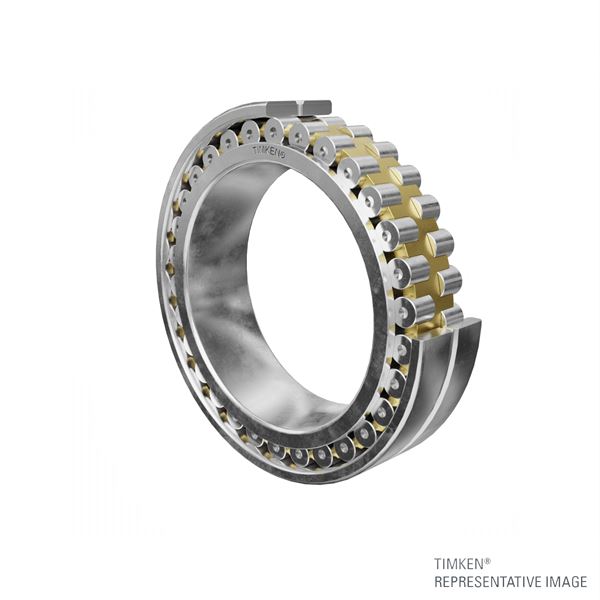

Timken NNU49/800MAW33
Cylindrical Roller Radial Bearings - Two-Row
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
800 mm
Static Load Rating C
17390000 N
Dynamic Load Rating C1
7070000 N
Geometry Factor C2
0.4500
Thermal Speed Ratings - Oil
190 rpm
Thermal Speed Ratings - Grease
180 rpm
Bearing Dimensions
O.D. D
1060.000 mm
Width B
258 mm
DUR/DOR F/E
880 mm
Mounting Data
Chamfer r
6 mm
Chamfer r3
6 mm
Backing Shaft Diameter d
865.4 mm
Backing Housing Diameter D
1000 mm
Lubrication Data
Lubrication Groove g
19.3 mm
Lubrication Hole Diameter h
9.5 mm
Number of Lubrication Holes
16
Dimension S4
10.50 mm
