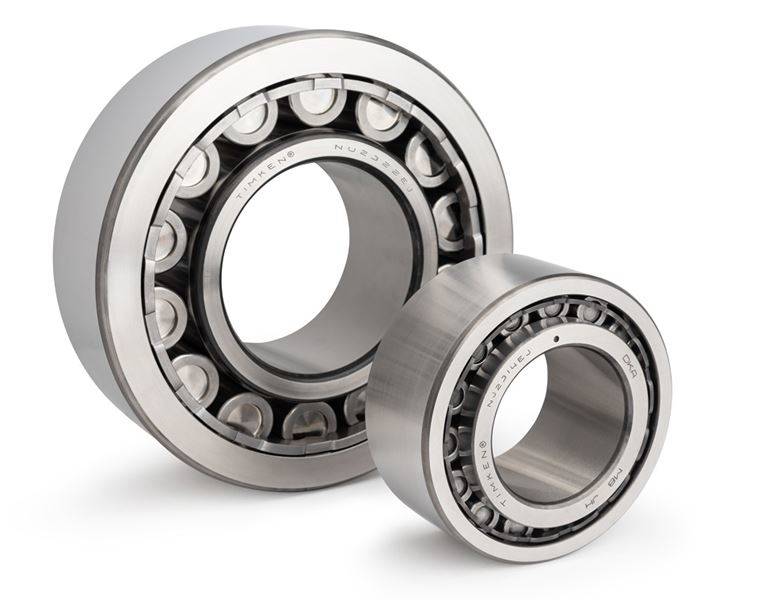

Timken NU2317EJ
Cylindrical Roller Radial Bearings - Single Row ISO
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
85 mm
Type
NU
Dimensions
D - Outer Diameter
180 mm
C - Inner Ring Width
60 mm
B - Outer Ring Width
60 mm
Basic Load Ratings
C0 - Static Radial Rating
458000 N
C - Dynamic Radial Rating1
423000 N
Factors
Reference Thermal Speed Rating (Grease)
3200 rpm
Reference Thermal Speed Rating (Oil)2
3700 rpm
Cg - Geometry Factor3
0.100
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius4
3 mm
r - Outer Ring "To Clear" Radius5
3 mm
da - Inner Ring Backing Diameter
101.8 mm
Da - Outer Ring Backing Diameter
160 mm
