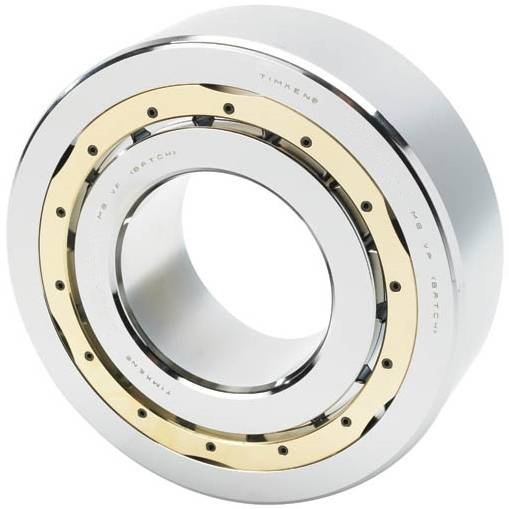

Timken P-1972-B
Cylindrical Roller Radial Bearings - Single Row ISO
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
180 mm
Type
N
Dimensions
D - Outer Diameter
280 mm
C - Inner Ring Width
82.55 mm
B - Outer Ring Width
82.55 mm
Basic Load Ratings
C0 - Static Radial Rating
1270000 N
C - Dynamic Radial Rating1
794000 N
Factors
Reference Thermal Speed Rating (Grease)
1300 rpm
Reference Thermal Speed Rating (Oil)2
1500 rpm
Cg - Geometry Factor3
0.1342
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius4
3.2 mm
r - Outer Ring "To Clear" Radius5
3.2 mm
