Timken S3PP

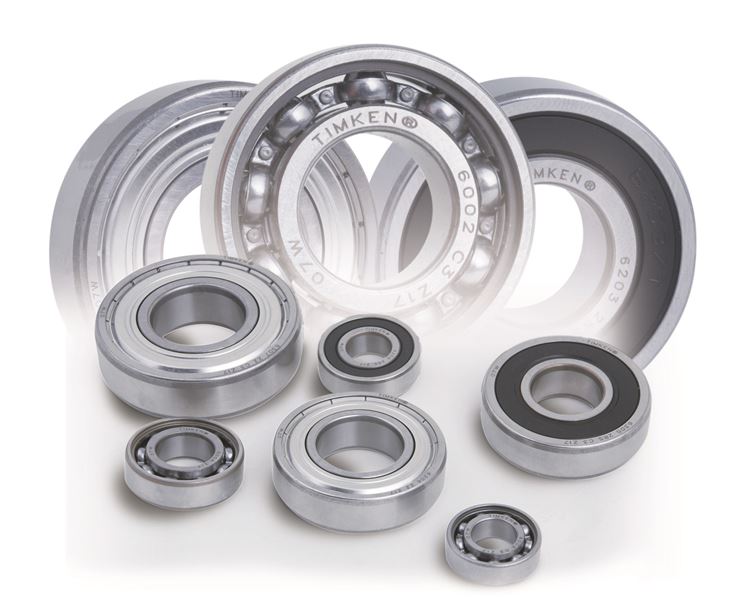

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
9.525 mm
Ball Type
STEEL
Manufacturing Part Number
PS3PP Z1 FS50160
Dimensions
D - Outer Diameter
22.23 mm
Bearing Width
7.142 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
3700 N
C0 - Static Radial Rating
1410 N
Factors
Limiting Speed (Grease)
18748 rpm
Limiting Speed (Oil)
21872 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
0.41 mm
r - Outer Ring "To Clear" Radius3
0.41 mm
da - Inner Ring Backing Diameter
12.19 mm
Da - Outer Ring Backing Diameter
20.32 mm
