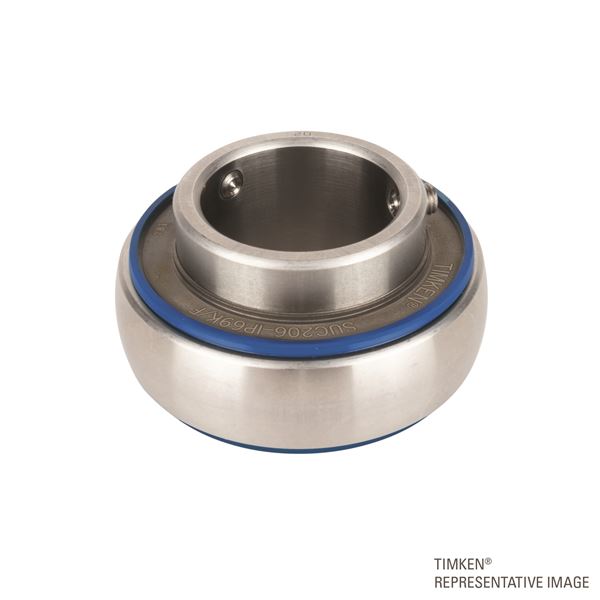

Timken SUC202-10-IP69K/F
FDA/EC Complaint Corrosion-Resistant Inserts – Stainless Steel Ball Bearing Set Screw Locking (IP69K)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
SUC202-10-IP69K/F
Specifications
Bore Shape
Cylindrical bore
Type
Insert Bearing
Locking Style
Set Screw Locking
Seal Type
IP69K Seal
Lubrication Type
Standard Food Safe Grease
Bearing Style
Ball Bearing
Dimensions
Outside Diameter D
47 mm
Outside Ring Width C
16 mm
Radius r1
1 mm
Groove Position C1
3.9 mm
Center of Bearing from End S
12.7 mm
Inside Ring Width B
31 mm
Dimension S1
18.3 mm
Set Screw Distance S2
5.0 mm
Set Screw Size
M6×0.75
Number of Set Screw
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
5350 N
Dynamic Load Rating
10900 N
