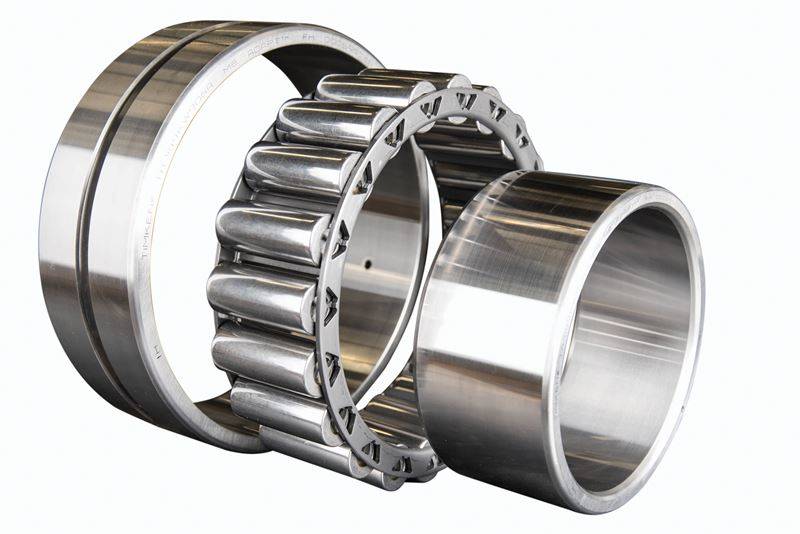

Timken TA2222KW33C4
ADAPT™ Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
110 mm
Tapered Bore
Y
Dimensions
D - Outer Diameter
200 mm
C - Inner Ring Width
53 mm
B - Outer Ring Width
53 mm
DUR - Diameter Under Roller
131.89 mm
F - Float
6 mm
Basic Load Ratings
C0 - Static Radial Rating
640000 N
C - Dynamic Radial Rating1
509000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
128.5 mm
Da - Outer Ring Backing Diameter
182 mm
