Timken TA2322W33C4
ADAPT Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
110 mm
Tapered Bore
N

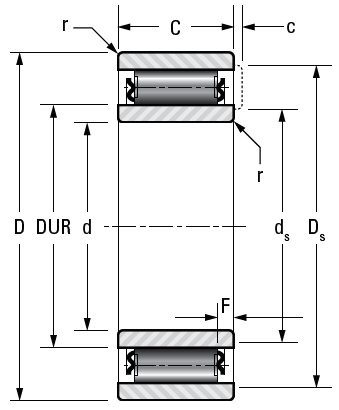

Dimensions
D - Outer Diameter
240 mm
C - Inner Ring Width
80 mm
B - Outer Ring Width
80 mm
DUR - Diameter Under Roller
139.9 mm
F - Float
7.5 mm
Basic Load Ratings
C0 - Static Radial Rating
1050000 N
C - Dynamic Radial Rating1
908000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.5 mm
r - Outer Ring "To Clear" Radius3
2.5 mm
da - Inner Ring Backing Diameter
135.9 mm
Da - Outer Ring Backing Diameter
212.9 mm
