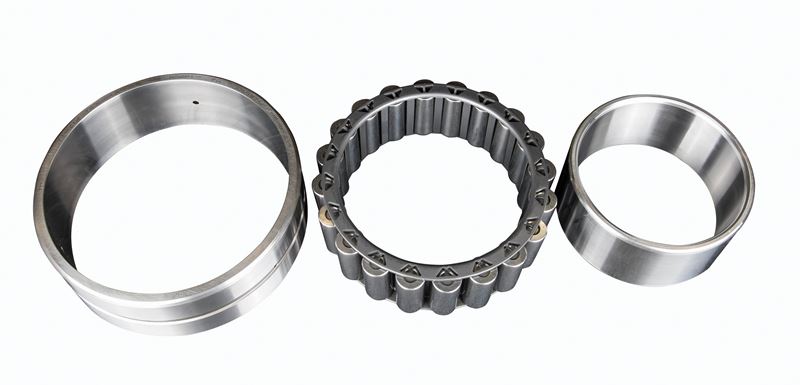

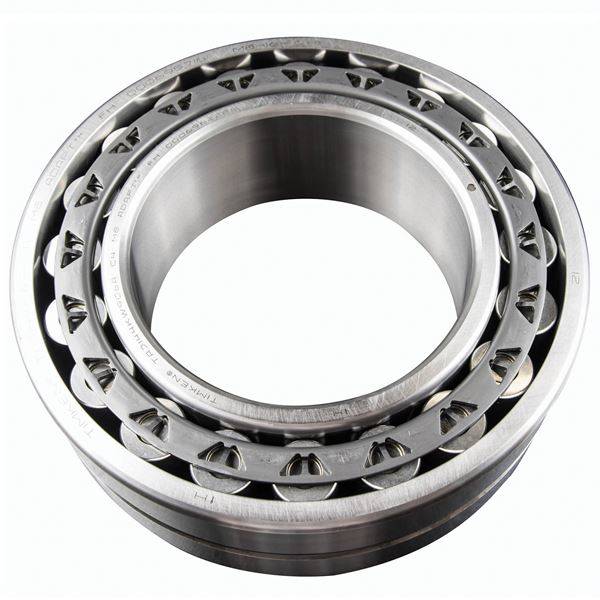

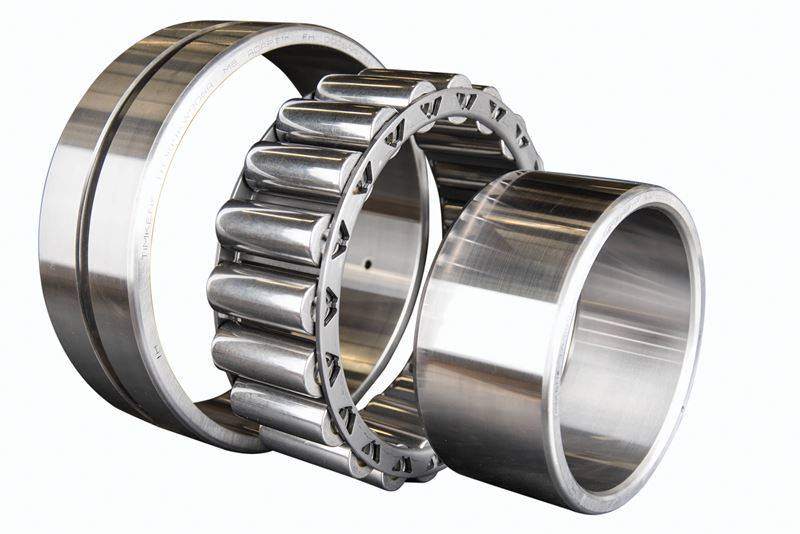

Timken TA3040C3
ADAPT™ Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
200 mm
Tapered Bore
N

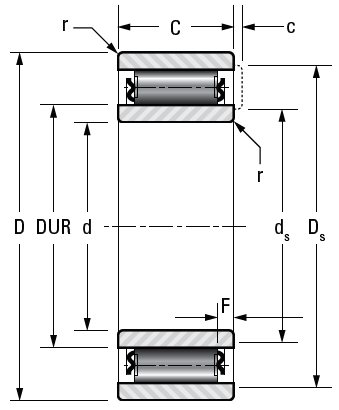

Dimensions
D - Outer Diameter
310 mm
C - Inner Ring Width
82 mm
B - Outer Ring Width
82 mm
DUR - Diameter Under Roller
228.39 mm
F - Float
8.5 mm
Basic Load Ratings
C0 - Static Radial Rating
1710000 N
C - Dynamic Radial Rating1
1070000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
223.5 mm
Da - Outer Ring Backing Diameter
285.7 mm
