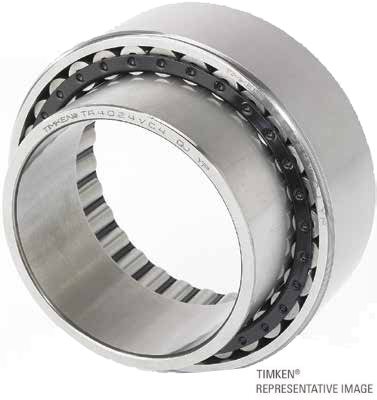

Timken TA3048KMW906AC4
ADAPT Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
240 mm
Tapered Bore
Y

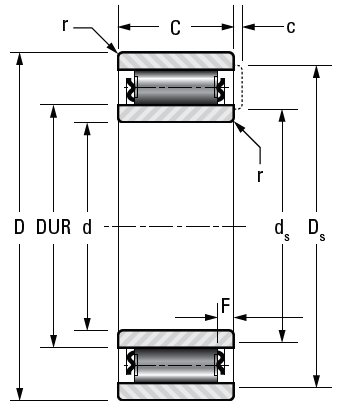

Dimensions
D - Outer Diameter
360 mm
C - Inner Ring Width
92 mm
B - Outer Ring Width
92 mm
DUR - Diameter Under Roller
270.89 mm
F - Float
11 mm
Basic Load Ratings
C0 - Static Radial Rating
2180000 N
C - Dynamic Radial Rating1
1300000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.5 mm
r - Outer Ring "To Clear" Radius3
2.5 mm
da - Inner Ring Backing Diameter
265.1 mm
Da - Outer Ring Backing Diameter
337 mm
