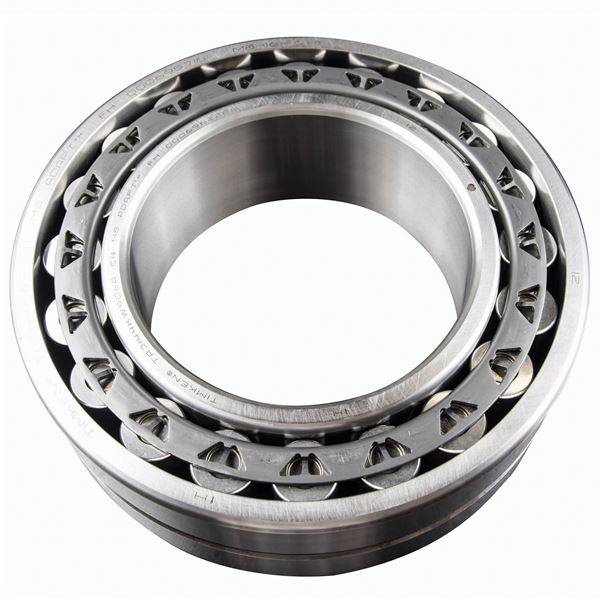

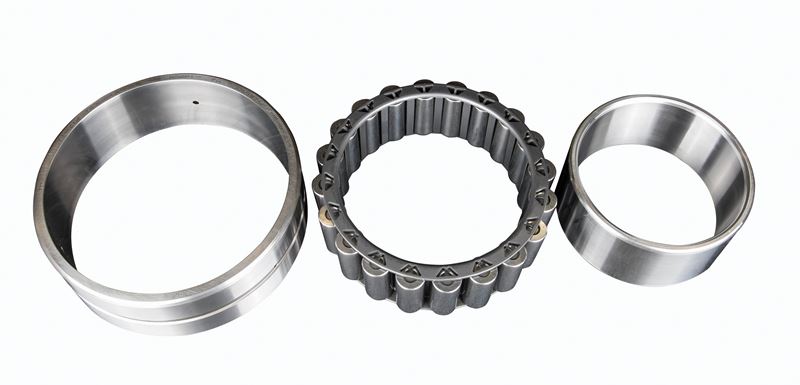

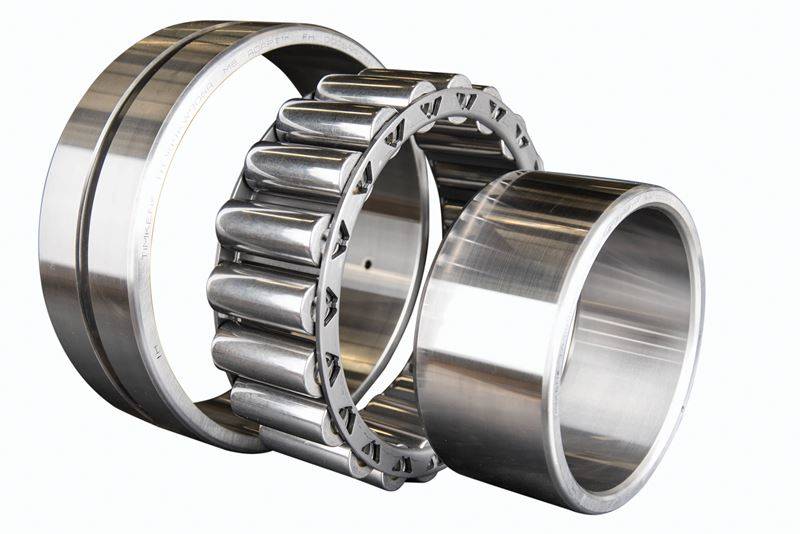

Timken TA3140KW906AC3
ADAPT™ Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
200 mm
Tapered Bore
Y

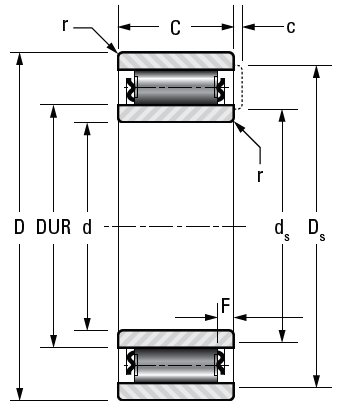

Dimensions
D - Outer Diameter
340 mm
C - Inner Ring Width
112 mm
B - Outer Ring Width
112 mm
DUR - Diameter Under Roller
235.21 mm
F - Float
11 mm
Basic Load Ratings
C0 - Static Radial Rating
2370000 N
C - Dynamic Radial Rating1
1730000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.5 mm
r - Outer Ring "To Clear" Radius3
2.5 mm
da - Inner Ring Backing Diameter
229 mm
Da - Outer Ring Backing Diameter
311 mm
