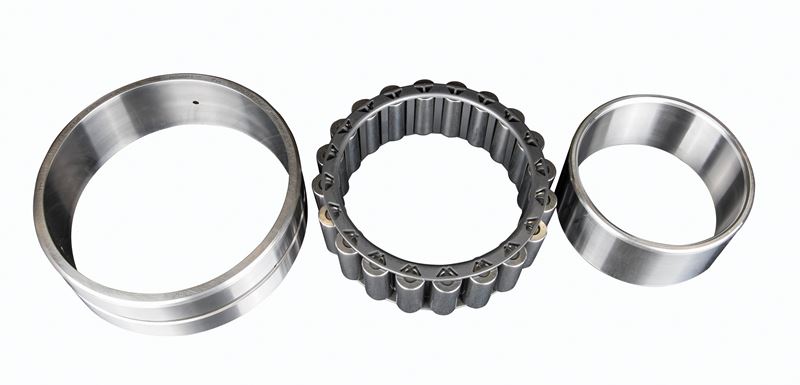

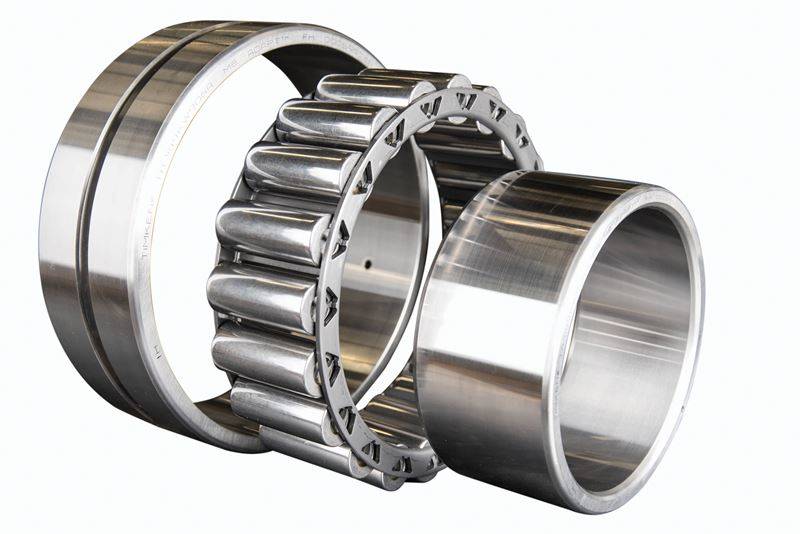

Timken TA3148W33C4
ADAPT Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
240 mm
Tapered Bore
N
Dimensions
D - Outer Diameter
400 mm
C - Inner Ring Width
128 mm
B - Outer Ring Width
128 mm
DUR - Diameter Under Roller
280.58 mm
F - Float
12 mm
Basic Load Ratings
C0 - Static Radial Rating
3450000 N
C - Dynamic Radial Rating1
2390000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
3 mm
r - Outer Ring "To Clear" Radius3
3 mm
da - Inner Ring Backing Diameter
273.7 mm
Da - Outer Ring Backing Diameter
367 mm
