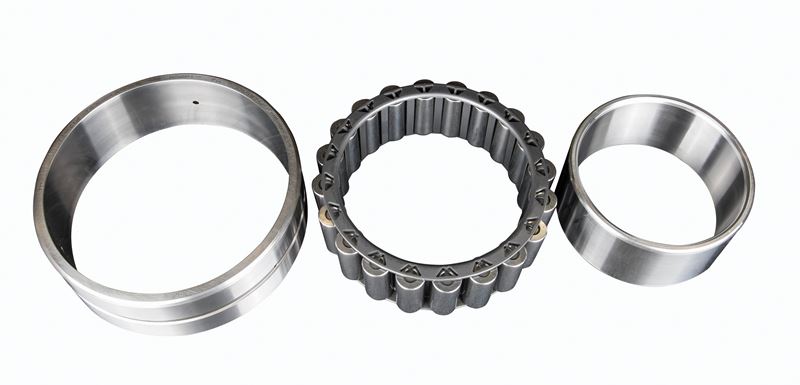

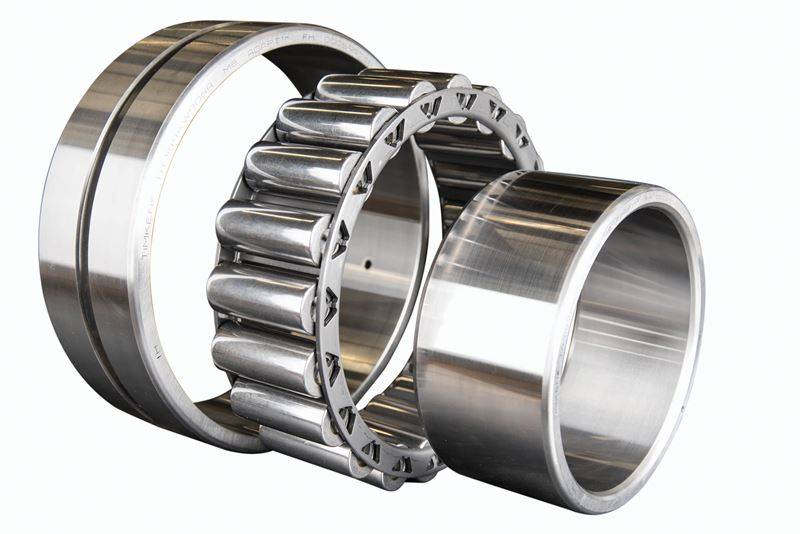

Timken TA3152KW33C3
ADAPT Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
260 mm
Tapered Bore
Y

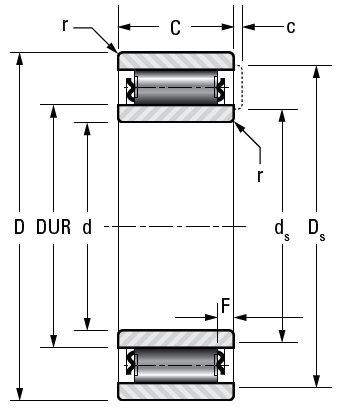

Dimensions
D - Outer Diameter
440 mm
C - Inner Ring Width
144 mm
B - Outer Ring Width
144 mm
DUR - Diameter Under Roller
304.9 mm
F - Float
14 mm
Basic Load Ratings
C0 - Static Radial Rating
4150000 N
C - Dynamic Radial Rating1
2630000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
3 mm
r - Outer Ring "To Clear" Radius3
3 mm
da - Inner Ring Backing Diameter
296.9 mm
Da - Outer Ring Backing Diameter
404 mm
