Timken TA4022VC3
ADAPT™ Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
110 mm
Tapered Bore
N

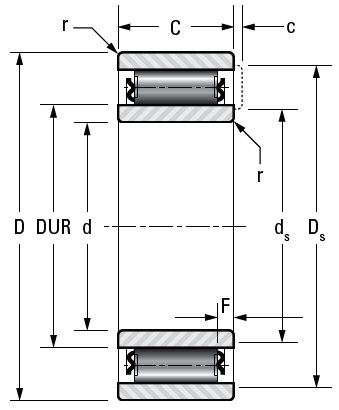

Dimensions
D - Outer Diameter
170 mm
C - Inner Ring Width
60 mm
B - Outer Ring Width
60 mm
DUR - Diameter Under Roller
125.4 mm
F - Float
6 mm
Basic Load Ratings
C0 - Static Radial Rating
810000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
1.8 mm
r - Outer Ring "To Clear" Radius2
1.8 mm
da - Inner Ring Backing Diameter
123.5 mm
Da - Outer Ring Backing Diameter
157 mm
