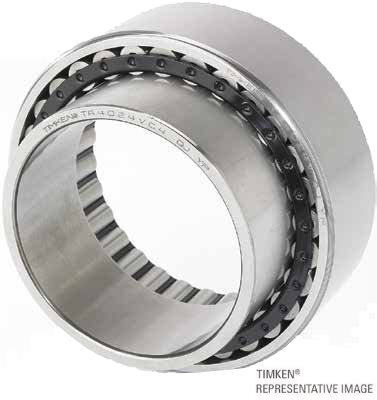

Timken TA4032VC3
ADAPT™ Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
160 mm
Tapered Bore
N

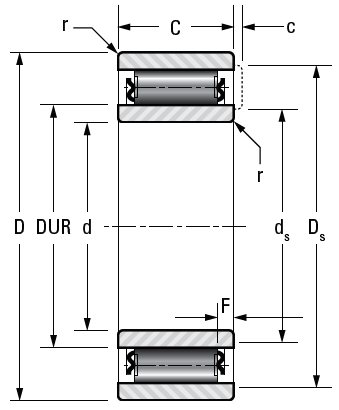

Dimensions
D - Outer Diameter
240 mm
C - Inner Ring Width
80 mm
B - Outer Ring Width
80 mm
DUR - Diameter Under Roller
180.6 mm
F - Float
6 mm
Basic Load Ratings
C0 - Static Radial Rating
1680000 N
C - Dynamic Radial Rating1
932000 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.9 mm
r - Outer Ring "To Clear" Radius3
1.9 mm
da - Inner Ring Backing Diameter
178.5 mm
Da - Outer Ring Backing Diameter
223 mm
