FAG 20224-K-MB-C3
Barrel Roller Bearings

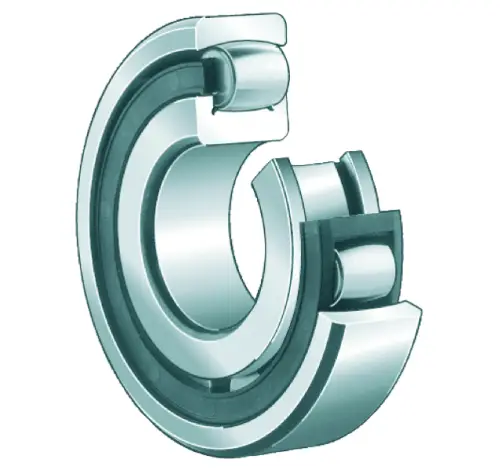

Barrel roller bearing 202..-K-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
40 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
415,000 N
Basic static load rating, radial
Cur
38,500 N
Fatigue load limit, radial
CG
3,350 1/min
Limiting speed
≈m
6.41 kg
Weight
Mounting dimensions
da min
132 mm
Minimum diameter shaft shoulder
da min
203 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
da max
143 mm
Maximum diameter of shaft shoulder
db min
127 mm
Minimum cavity diameter of the sleeve
Ba min
13 mm
Minimum cavity width of the sleeve
