FAG 20320-K-MB
Barrel Roller Bearings
Barrel roller bearing 203..-K-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

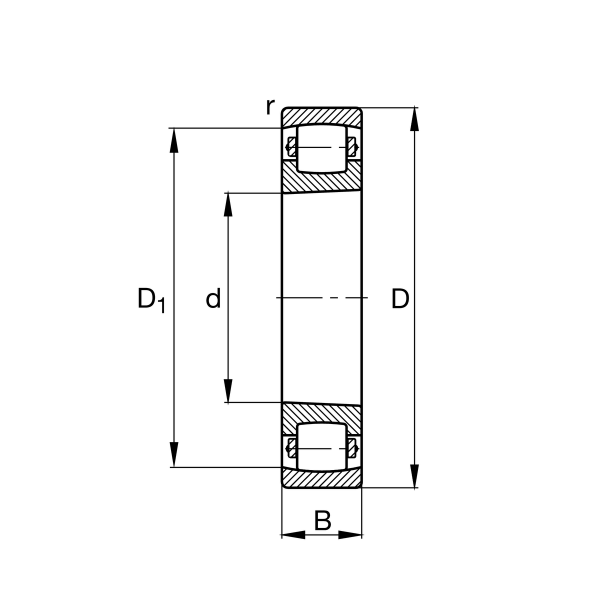

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
215 mm
Outside diameter
B
47 mm
Width
Cr
365,000 N
Basic dynamic load rating, radial
C0r
440,000 N
Basic static load rating, radial
Cur
38,500 N
Fatigue load limit, radial
CG
3,250 1/min
Limiting speed
≈m
8.58 kg
Weight

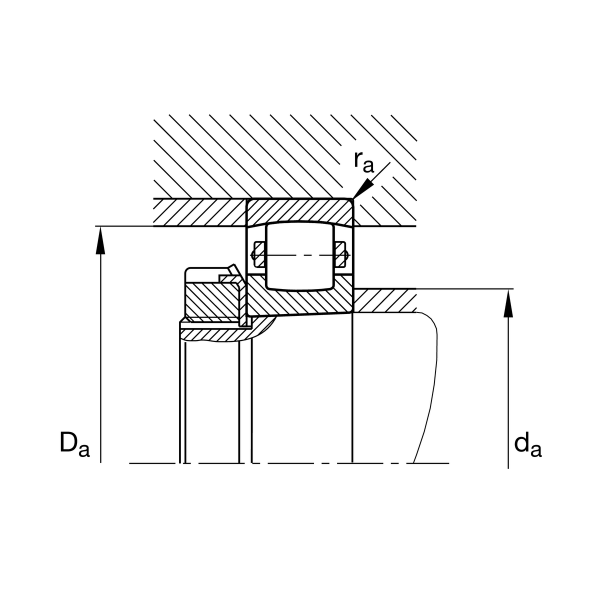

Mounting dimensions
da min
114 mm
Minimum diameter shaft shoulder
da min
201 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
da max
127 mm
Maximum diameter of shaft shoulder
db min
108 mm
Minimum cavity diameter of the sleeve
Ba min
7 mm
Minimum cavity width of the sleeve
