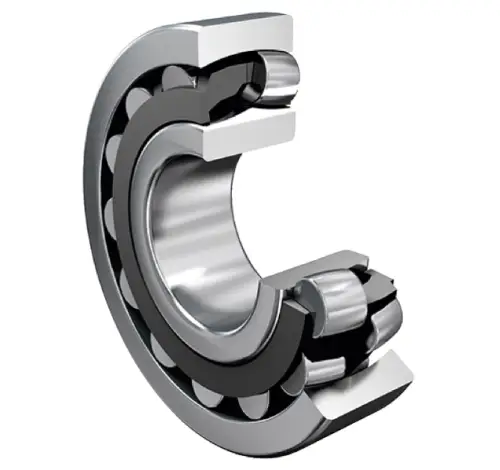

FAG 21304-E1-XL-TVPB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
41,000 N
Basic dynamic load rating, radial
C0r
33,000 N
Basic static load rating, radial
Cur
3,800 N
Fatigue load limit, radial
CG
16,000 1/min
Limiting speed
nϑr
9,700 1/min
Reference speed
≈m
0.158 kg
Weight
Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
Da max
45 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
