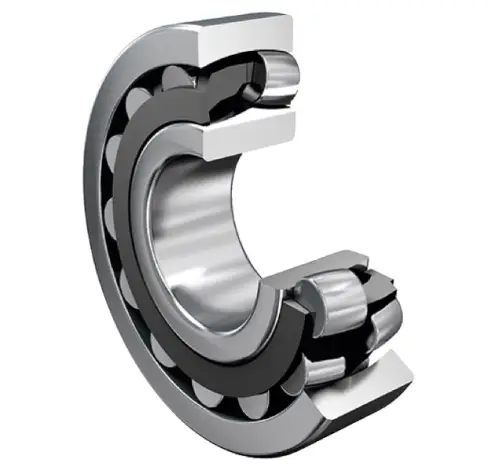

FAG 21307-E1-XL-TVPB
Spherical Roller Bearings
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
80 mm
Outside diameter
B
21 mm
Width
Cr
83,000 N
Basic dynamic load rating, radial
C0r
74,000 N
Basic static load rating, radial
Cur
8,300 N
Fatigue load limit, radial
CG
10,900 1/min
Limiting speed
nϑr
6,800 1/min
Reference speed
≈m
0.497 kg
Weight
Mounting dimensions
da min
44 mm
Minimum diameter shaft shoulder
Da max
71 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
