FAG 21310-E1-XL>A
Spherical Roller Bearings
Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

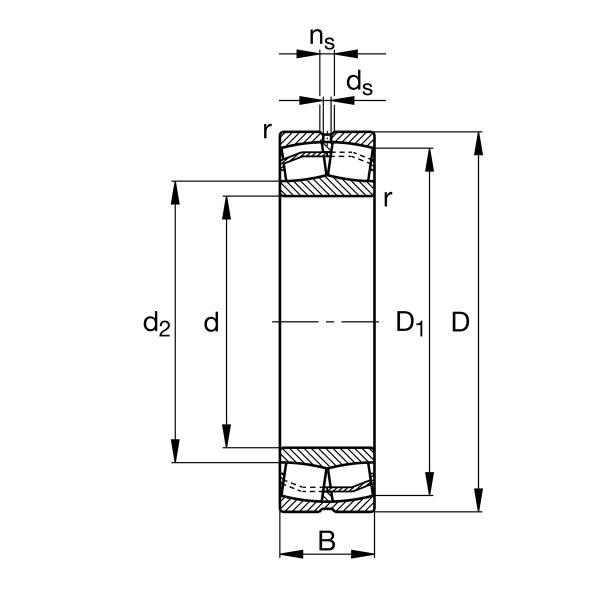

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
27 mm
Width
Cr
129,000 N
Basic dynamic load rating, radial
C0r
130,000 N
Basic static load rating, radial
Cur
17,700 N
Fatigue load limit, radial
CG
9,000 1/min
Limiting speed
nϑr
5,400 1/min
Reference speed
≈m
1.281 kg
Weight
Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
Da max
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
